| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
184 pcs
|
184 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

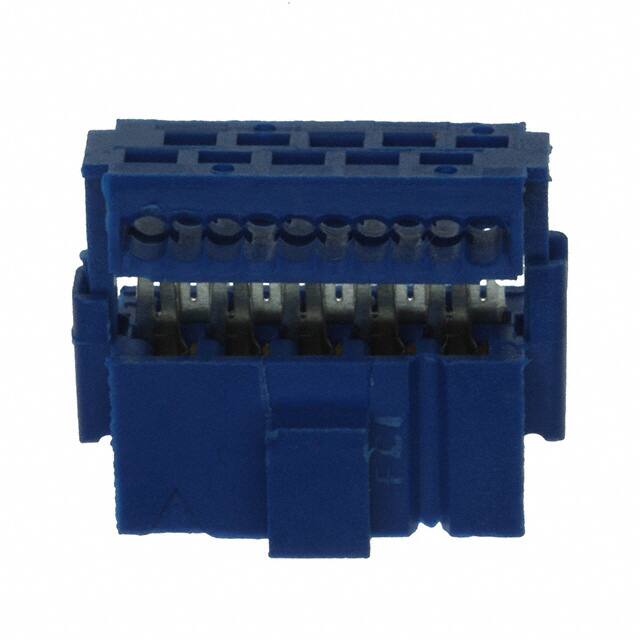

The Amphenol ICC 66900-310LF is a 10 position IDC receptacle designed for use with 28-30 AWG ribbon cable. It features a 2.54mm (0.100") pitch and 2.54mm row spacing, with 2 rows of female socket contacts. The connector is terminated via IDC (Insulation Displacement Connection) and is free hanging (in-line) mounted, making it suitable for cable-to-board or cable-to-cable applications.
The contacts are finished with gold, GXT™ plating with a thickness of 30.0µin (0.76µm), providing reliable electrical performance and corrosion resistance. The housing is blue and includes feed through and polarizing key features for correct orientation and secure mating. This connector is RoHS3 compliant and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.10 | $2.10 |
| 10+ | $1.79 | $1.79 |
| 25+ | $1.60 | $1.60 |
| 100+ | $1.52 | $1.52 |
| 250+ | $1.50 | $1.50 |
| 500+ | $1.42 | $1.42 |
| 1,000+ | $1.31 | $1.31 |
| 2,500+ | $1.21 | $1.21 |
| 3,500+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 10 positions arranged in 2 rows.
The pitch is 2.54mm (0.100") with a row spacing of 2.54mm.
It supports 28-30 AWG ribbon cable with IDC termination.
It is free hanging (in-line) mounted.
The contacts have a gold, GXT™ finish with a thickness of 30.0µin (0.76µm).
