| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Noise | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Ripple | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight | |
| Width |

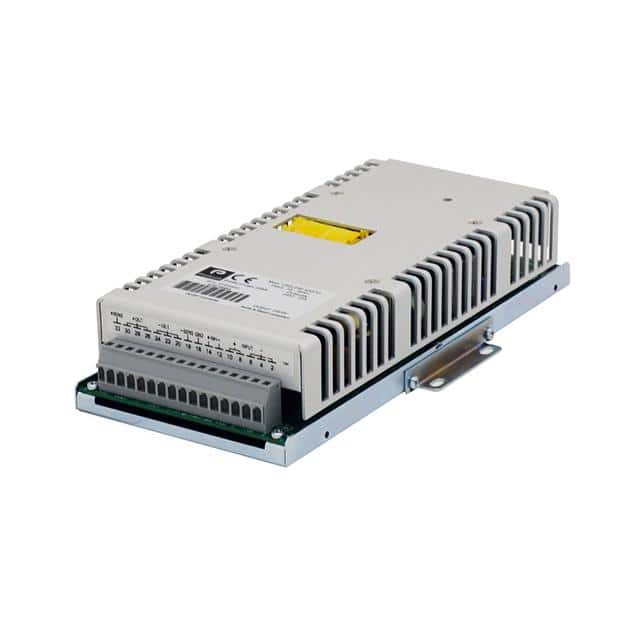

The Premium PSU 6657D is a high-performance DC DC converter from the CTS-240 series, designed for demanding applications. This enclosed unit provides a stable 24V output at 10A, delivering a total power of 240W.
Engineered for reliability, the 6657D boasts an efficiency of up to 92% and features robust electrical specifications including line and load regulation of less than 0.2%. It operates within a wide temperature range of -25°C to 85°C, ensuring performance in various environmental conditions. The converter meets stringent safety and EMC standards, including EN50155, EN45545-2, EN60950-1, EN62368-1, and EN50121-4.
Designed for easy integration, the 6657D utilizes a chassis mount configuration. Its mechanical dimensions are 220.0mm in length, 100.0mm in width, and 35.0mm in height, with an approximate weight of 640g. The unit includes features such as input voltage OK LED, output voltage presence LED, and remote inhibit functionality.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14.4V to 275V
24V
10A
87%
EN45545-2, EN50121-4, EN50121-3-2, IEC 61709
220mm length, 100mm width, 35mm height
