| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish - Mating | |
| Contact Finish Thickness | |
| Contact Finish Thickness - Mating | |
| Contact Material | |
| Contact Size | |
| Contact Termination | |
| Contact Type | |
| ELV | |
| Failure Rate | |
| Packaging Method | |
| Pin or Socket | |
| Tape & Reel | |
| Type | |
| Wire Gauge | |
| Wire Gauge (AWG) |

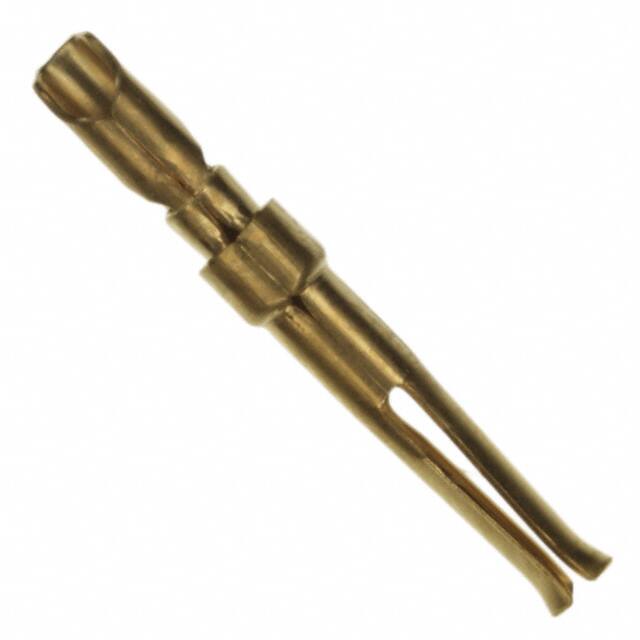

The TE Connectivity 66569-3 is a socket contact designed for the AMPLIMITE HDP-20 (Crimp Snap) series. It is a stamped phosphor bronze contact with a mating area gold finish (30µin over nickel) for reliable signal transmission. The contact is sized 20 and accommodates 18 AWG (0.8-0.9 mm²) wire via a solder cup termination.
This contact is used with AMPLIMITE HDP-20 subminiature D connectors and CPC connectors, making it suitable for commercial signal and power applications. The contact is RoHS and ELV compliant, ensuring environmental compliance.
Packaged as loose piece, this contact is designed for crimp snap-in retention in the housing. The gold plating provides corrosion resistance and consistent electrical performance. No current or voltage ratings are specified in the available data.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.44 | $0.44 |
| 10+ | $0.39 | $0.39 |
| 25+ | $0.34 | $0.34 |
| 100+ | $0.33 | $0.33 |
| 250+ | $0.32 | $0.32 |
| 10,000+ | $0.25 | $0.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Socket.
Phosphor bronze.
Gold flash over palladium nickel or gold (30µin) over nickel.
18 AWG (0.8-0.9 mm²).
Solder cup.
Size 20.
Yes, RoHS compliant and ELV compliant.
