| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Wire Type |

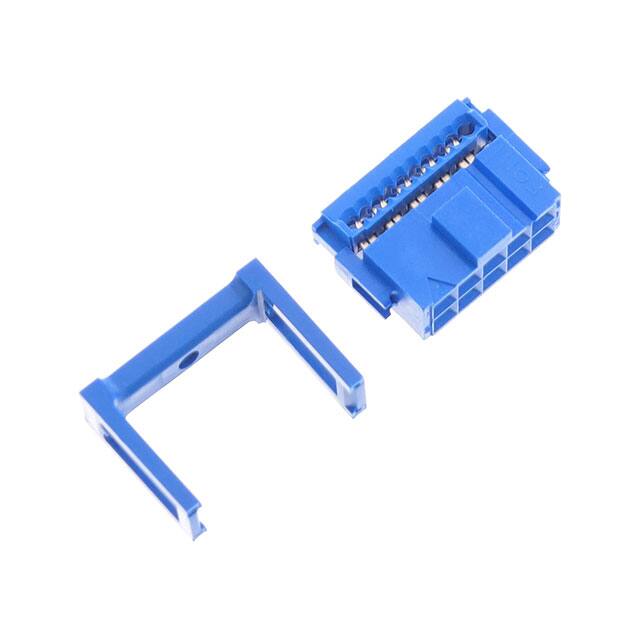

The 66564-810LF is a 10-position IDC receptacle from Amphenol ICC, part of their rectangular connector family. It features 2 rows with a 2.54mm pitch and row spacing, and is designed for free-hanging (in-line) mounting.
This connector terminates ribbon cable using IDC (Insulation Displacement Contact) technology, eliminating the need for wire stripping. The contacts are female sockets with a gold GXT finish (0.76µm thick), ensuring reliable and corrosion-resistant connections. The blue housing includes feed-through design, polarizing key, and strain relief for secure cable management.
Typical applications include internal wiring in electronic equipment, data communication systems, and industrial control panels where reliable, space-saving connections are required. The polarization feature prevents mis-mating, and the strain relief reduces stress on the cable terminations.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.54 | $2.54 |
| 10+ | $2.16 | $2.16 |
| 25+ | $2.02 | $2.02 |
| 45+ | $1.68 | $1.68 |
| 50+ | $1.93 | $1.93 |
| 100+ | $1.84 | $1.84 |
| 250+ | $1.72 | $1.72 |
| 270+ | $1.65 | $1.65 |
| 450+ | $1.62 | $1.62 |
| 500+ | $1.64 | $1.64 |
| 855+ | $1.60 | $1.60 |
| 1,000+ | $1.56 | $1.56 |
| 2,500+ | $1.46 | $1.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions arranged in 2 rows.
2.54mm (0.100") pitch and row spacing.
Free hanging (in-line) mounting.
IDC (Insulation Displacement Contact) for ribbon cable.
Gold, GXT™ with 0.76µm thickness.
Feed through design, polarizing key, and strain relief.
Blue.
