| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

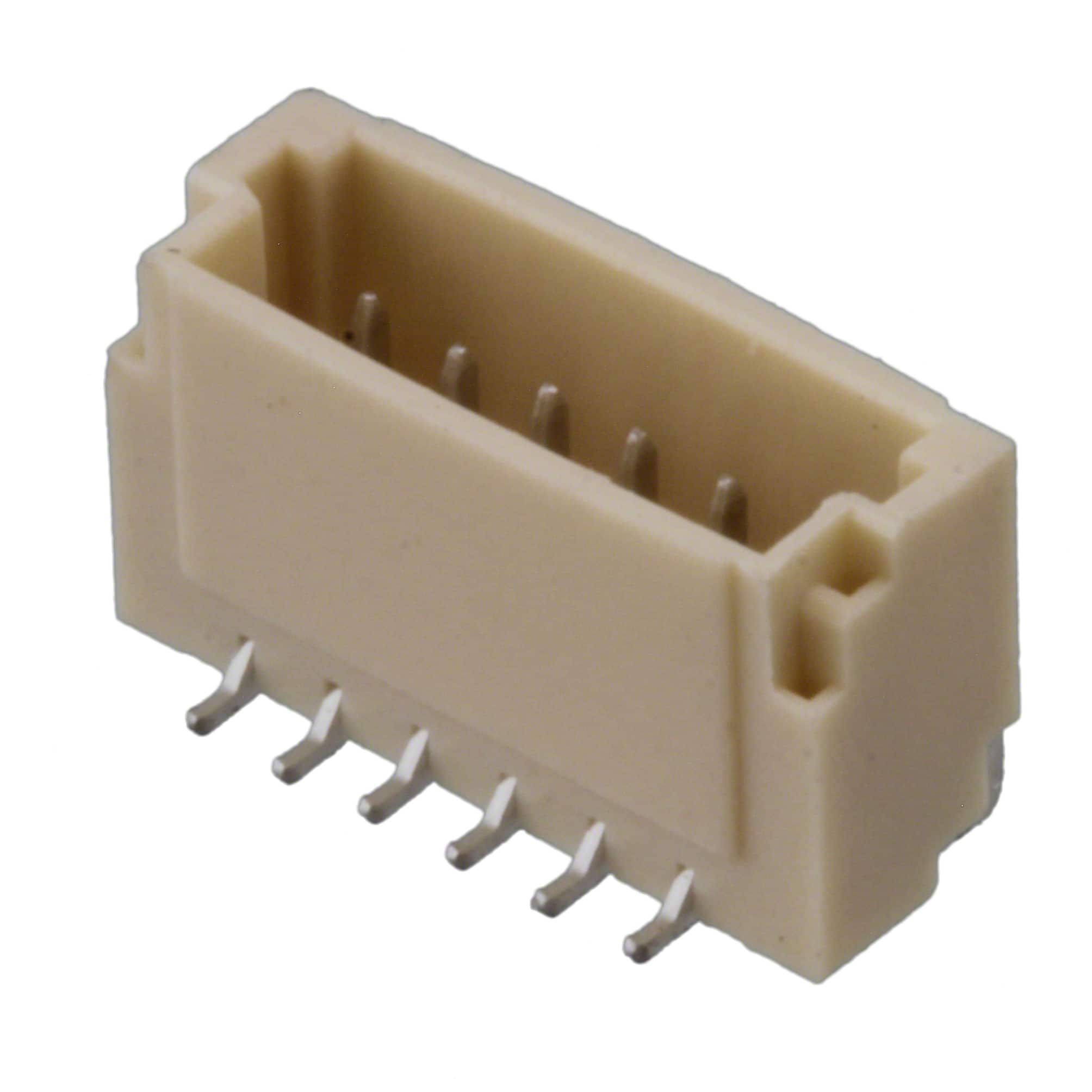

The Würth Elektronik 665306124022 is a WR-WTB series SMT male vertical shrouded header designed for board-to-cable/wire connections. It features 6 positions in a single row with a 1.00mm pitch, making it suitable for compact designs. The header is fully shrouded with a 4-wall design and uses a push-pull fastening mechanism.
Electrical specifications include a current rating of 1A per contact, voltage rating of 50V, insulation resistance of 100 MΩ minimum, withstanding voltage of 500V AC, and contact resistance of 20 mΩ maximum. The operating temperature range is -25°C to 85°C.
Contacts are made of phosphor bronze with a tin finish, and the insulator is liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The component includes pick-and-place and solder retention features for automated assembly. Packaging is tape and reel with cap.
Environmental compliance includes RoHS (2011/65/EU & 2015/863), REACH, and Halogen Free (JEDEC JS709B, IEC 61249-2-21). Moisture sensitivity level is MSL 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.37 | $1.37 |
| 50+ | $1.31 | $1.31 |
| 100+ | $1.21 | $1.21 |
| 250+ | $1.12 | $1.12 |
| 500+ | $0.93 | $0.93 |
| 1,000+ | $0.89 | $0.89 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
1.00mm (0.039 inches).
1 A per contact.
50 V.
Surface mount (SMT).
-25°C to 85°C.
Yes, RoHS compliant per 2011/65/EU & 2015/863.
