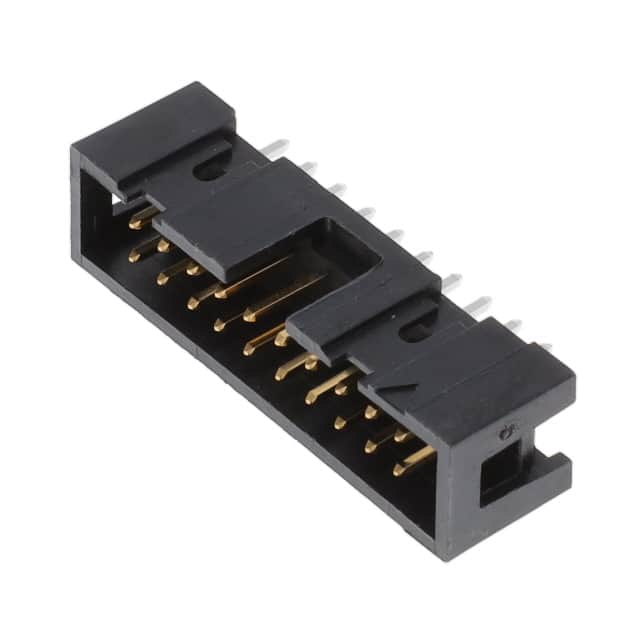

The 66506-007LF from Amphenol ICC is a 20-position, 2-row shrouded header designed for board-to-cable/wire applications. This through-hole connector features a 2.54mm (0.100") pitch and row spacing, with square male pins made of phosphor bronze and a gold or gold GXT™ contact finish of 30.0µin (0.76µm).
The insulator is molded from black glass-filled polyester with a UL94 V-0 flammability rating, ensuring reliable performance in demanding environments. The shrouded 4-wall design provides mating alignment and protection, while a keying slot prevents incorrect insertion. The push-pull fastening type allows easy mating and unmating.
With a contact length of 5.84mm and an insulation height of 9.27mm, this header is suitable for standard through-hole soldering. The 5.84mm tail length accommodates common PCB thicknesses. All 20 positions are loaded, offering full use of the connector's capacity.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.08 | $2.08 |
| 10+ | $1.77 | $1.77 |
| 25+ | $1.67 | $1.67 |
| 100+ | $1.50 | $1.50 |
| 250+ | $1.37 | $1.37 |
| 500+ | $1.27 | $1.27 |
| 1,200+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions in 2 rows.
2.54mm (0.100") pitch and row spacing.
Through-hole solder termination.
Gold or Gold, GXT™ with 30.0µin (0.76µm) thickness.
Black glass-filled polyester with UL94 V-0 rating.
Yes, it has a shrouded 4-wall design.
Push-pull fastening.
