| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

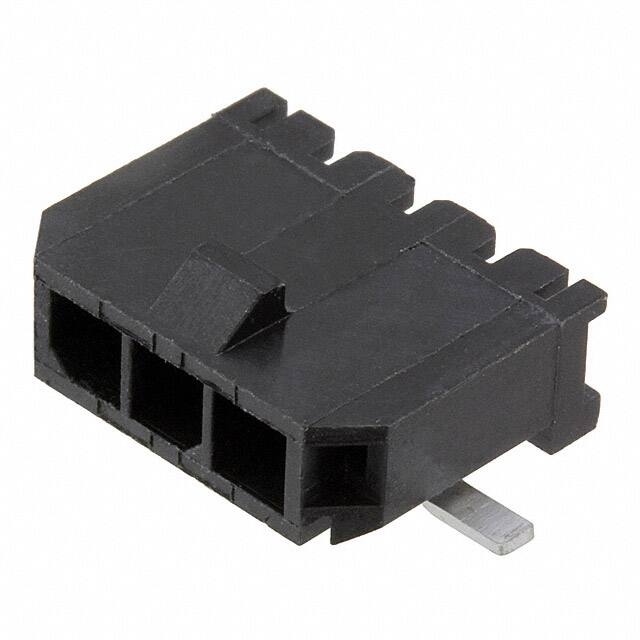

This 3-position single-row header from Würth Elektronik features a 3.00mm pitch and surface-mount right-angle orientation. It is designed for board-to-cable/wire applications with a shrouded 4-wall housing and locking ramp for secure mating.
Electrical ratings include 5A current per contact and 250VAC working voltage, with dielectric strength of 1500VAC and contact resistance of 10mOhm maximum. Insulation resistance exceeds 1000MOhm.
Constructed with a liquid crystal polymer (LCP) insulator rated UL94 V-0, copper alloy contacts with tin plating, and black color. Operating temperature range is -40°C to 105°C. The component is RoHS compliant, lead-free, and MSL Level 1 per JEDEC lead-free reflow process.
Packaged in Tape & Reel for automated assembly. Solder retention features enhance reliability in production.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.06 | $2.06 |
| 10+ | $2.02 | $2.02 |
| 50+ | $1.86 | $1.86 |
| 100+ | $1.63 | $1.63 |
| 250+ | $1.51 | $1.51 |
| 400+ | $1.51 | $1.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This header has 3 positions.
The pitch is 3.00mm.
The current rating is 5A per contact.
The voltage rating is 250VAC.
Surface Mount, Right Angle.
The insulator is made of Liquid Crystal Polymer (LCP) with UL94 V-0 flammability rating.
The operating temperature range is -40°C to 105°C.
