| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mating Cycles | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

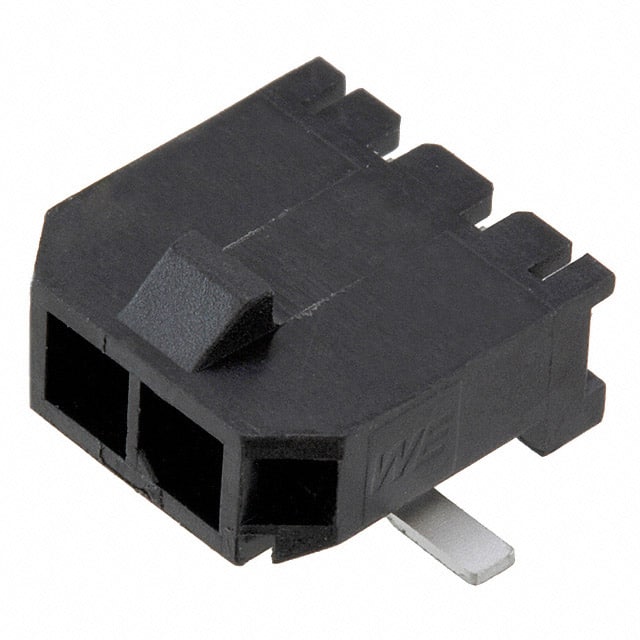

The Würth Elektronik 662102145021 is a 2-position, single row, 3.00mm pitch male pin header designed for board-to-cable/wire applications. It features a surface mount, right angle orientation with solder termination and solder retention for reliable PCB attachment. The connector is fully shrouded with a 4-wall design and includes a locking ramp fastening mechanism for secure mating.
Electrical ratings include a current rating of 5A and a voltage rating of 250V. The contacts are made of copper alloy with a tin finish, and the insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C.
The header is packaged in tape and reel for automated assembly. It is RoHS compliant and lead free. This connector is suitable for general electronic equipment where a compact, reliable board-to-wire connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
| 10+ | $1.97 | $1.97 |
| 50+ | $1.82 | $1.82 |
| 100+ | $1.59 | $1.59 |
| 250+ | $1.48 | $1.48 |
| 400+ | $1.48 | $1.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions, all loaded, in a single row.
The pitch is 3.00mm (0.118 inches).
The current rating is 5A.
The voltage rating is 250V.
It is surface mount with a right angle orientation.
Yes, it is RoHS compliant and lead free.
The operating temperature range is -40°C to 105°C.
