| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

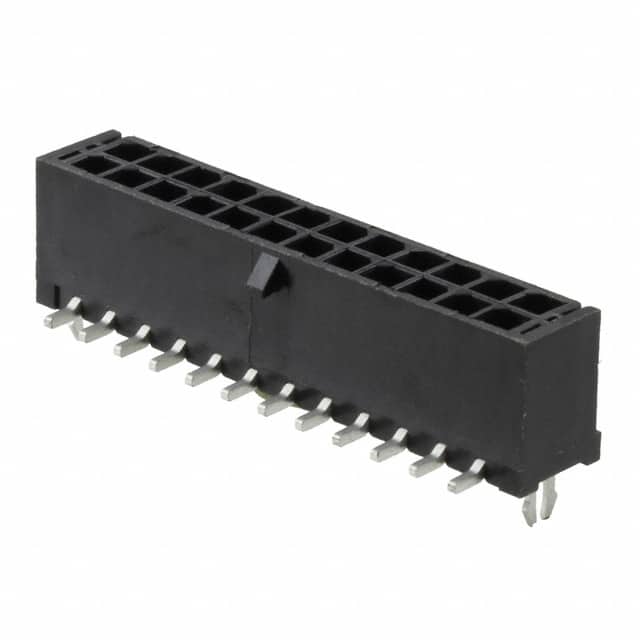

The Würth Elektronik 662024235922 is a 24-position, dual row, surface mount male pin header with a 3.00mm pitch. It features a shrouded 4-wall design with a locking ramp for secure mating with compatible cable assemblies. The header is rated for 5A current and 250V AC working voltage, with a contact resistance of 10 mOhm max and insulation resistance greater than 1000 MOhm. The dielectric withstanding voltage is 1500V AC per minute.
The contacts are made of copper alloy with a tin finish, and the insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The operating temperature range is -40°C to 105°C. The header includes a board lock feature for secure attachment to the PCB. It is packaged in a tube and is RoHS compliant and lead free. This connector is suitable for board-to-cable/wire applications requiring a reliable, polarized connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.22 | $3.22 |
| 10+ | $3.16 | $3.16 |
| 120+ | $2.92 | $2.92 |
| 280+ | $2.55 | $2.55 |
| 520+ | $2.37 | $2.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.00mm.
It has 24 positions arranged in 2 rows.
The current rating is 5A.
The voltage rating is 250V AC.
Surface mount (SMT).
Yes, it is RoHS3 compliant and lead free.
-40°C to 105°C.
