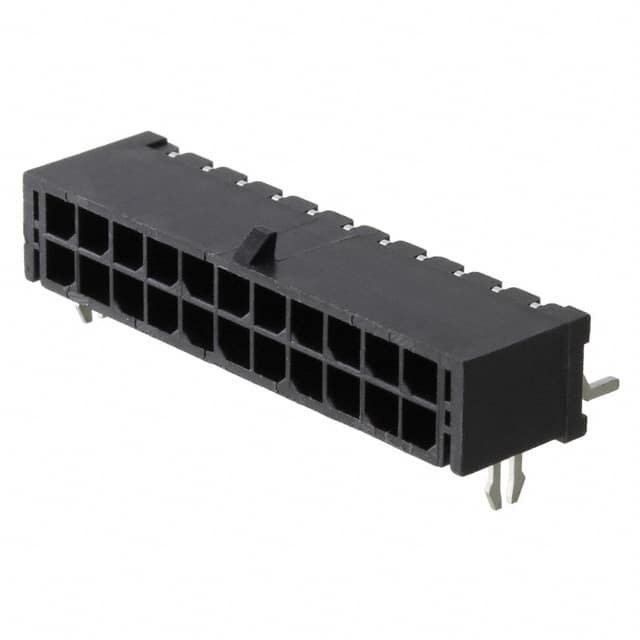

662022230822 22-position, 3.00mm pitch, dual row, right angle surface mount male header with shrouded body and board lock.
Mfr Part #:

662022230822

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
22-position, 3.00mm pitch, dual row, right angle surface mount male header with shrouded body and board lock.
✓ Total Stock: 53 pcs
$ Price Range: $2.50 - $3.41

662022230822 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
53 pcs
On Request
53 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

662022230822 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Operating Temperature Range
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Method
Voltage Rating
View Similar Products (0)

662022230822 Description

Short technical summary and product information.

This 22-position header from Würth Elektronik features a 3.00mm pitch and dual row configuration. It is designed for board-to-cable/wire applications with a right angle surface mount termination. The header is fully shrouded with four walls and includes a locking ramp for secure mating. Contacts are made of copper alloy with tin plating, rated for 5A current and 250V AC voltage. The insulator is black LCP with UL94 V-0 flammability rating, operating from -40°C to 105°C. Electrical characteristics include 10 mOhm max contact resistance, >1000 MOhm insulation resistance, and 1500V AC/min dielectric withstanding voltage. The component is RoHS compliant and lead-free, with JEDEC lead-free reflow soldering compatibility. Packaging is in tubes.

662022230822 Quick Information

Product Type: Header Connector
Series: WR-MPC3
Canonical Name: 3.00mm Pitch 22-Position Dual Row Right Angle SMT Header with Board Lock
Subcategory: Board-to-Cable/Wire

662022230822 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

662022230822 Estimated Pricing

Qty Low High
1+ $3.41 $3.41
10+ $3.34 $3.34
112+ $3.08 $3.08
256+ $2.70 $2.70
512+ $2.50 $2.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

662022230822 Features

  • 22-position dual row header with 3.00mm pitch.
  • Right angle surface mount for compact designs.
  • Rated for 5A current and 250V AC voltage.
  • Operating temperature range -40°C to 105°C.
  • RoHS compliant and lead-free soldering process.

662022230822 Applications

  • Ideal for board-to-wire connections in industrial controls.
  • Suitable for automotive electronics and sensor interfaces.
  • Used in power supply and lighting applications.
  • Applicable in consumer electronics requiring compact connectors.
  • Designed for applications needing secure locking mechanism.

662022230822 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 662022230822 have?

22 positions.

What is the pitch of the 662022230822?

3.00 mm.

What is the current rating of this header?

5 A.

What is the voltage rating?

250 V AC.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-40°C to 105°C.

How many mating cycles are supported?

25 cycles.
