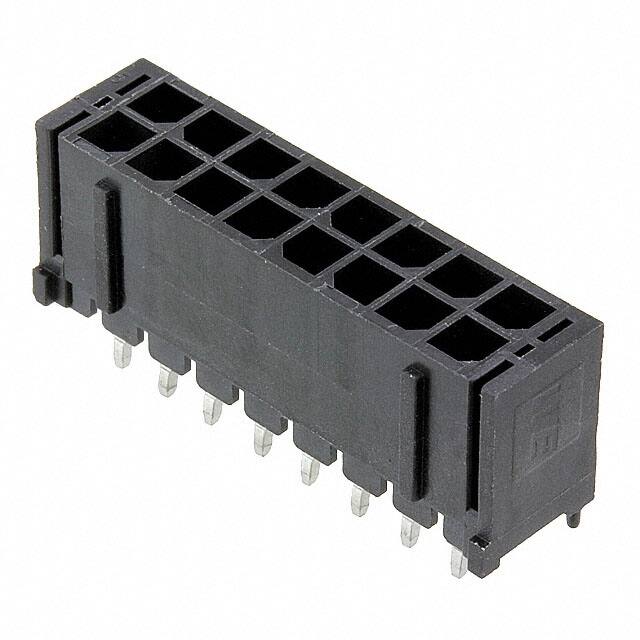

66201621122 The 66201621122 is a 16-position, 2-row, 3.00mm pitch male header from the WR-MPC3 series. It features a shrouded 4-wall design, locking ramp, and through-hole termination with kinked solder pins.
Mfr Part #:

66201621122

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The 66201621122 is a 16-position, 2-row, 3.00mm pitch male header from the WR-MPC3 series. It features a shrouded 4-wall design, locking ramp, and through-hole termination with kinked solder pins.
✓ Total Stock: 2,046 pcs
$ Price Range: $0.98 - $1.32

66201621122 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,023 pcs
On Request
1023 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1,023 pcs
On Request
1023 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

66201621122 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Halogen Free
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Storage Temperature
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

66201621122 Description

Short technical summary and product information.

The Würth Elektronik 66201621122 is a 16-position, dual-row male pin header from the WR-MPC3 series, designed for board-to-cable/wire applications. It features a 3.00mm pitch and a fully shrouded 4-wall housing to ensure secure mating and prevent misalignment.



The header is rated for 5A current and 250VAC voltage, with an operating temperature range of -40°C to 105°C. Contacts are made of copper alloy with tin plating, and the insulator is black LCP (Liquid Crystal Polymer) with a UL94 V-0 flammability rating.



Termination is through-hole with kinked solder pins for reliable retention. The connector includes a locking ramp for secure cable-to-board connections and a board guide feature for easy alignment during assembly. Packaging is in tube format. RoHS compliant and lead-free.

66201621122 Quick Information

Product Type: Header, Male Pins
Series: WR-MPC3
Canonical Name: WR-MPC3 Series Male Header, 16 Positions, 2 Rows, 3.00mm Pitch, Through Hole, Shrouded
Subcategory: Shrouded Header

66201621122 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

66201621122 Estimated Pricing

Qty Low High
1+ $1.32 $1.32
10+ $1.30 $1.30
112+ $1.20 $1.20
280+ $1.05 $1.05
504+ $0.98 $0.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

66201621122 Features

  • 16 positions in dual-row 3.00mm pitch configuration.
  • Shrouded 4-wall housing with locking ramp.
  • Rated for 5A current and 250VAC voltage.
  • Through-hole mounting with kinked tin solder pins.
  • RoHS compliant and lead-free with UL94 V-0 insulator.

66201621122 Applications

  • Ideal for wire-to-board connections in power supplies.
  • Used in industrial control and automation equipment.
  • Suitable for consumer electronics requiring reliable headers.
  • Common in LED lighting and automotive (non-critical) applications.

66201621122 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 66201621122 have?

16 positions in 2 rows.

What is the pitch of this header?

3.00mm.

What is the current rating?

5A.

What is the voltage rating?

250VAC.

What is the mounting type?

Through hole.

What is the operating temperature range?

-40°C to 105°C.

Is the connector RoHS compliant?

Yes, RoHS compliant and lead-free.
