| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

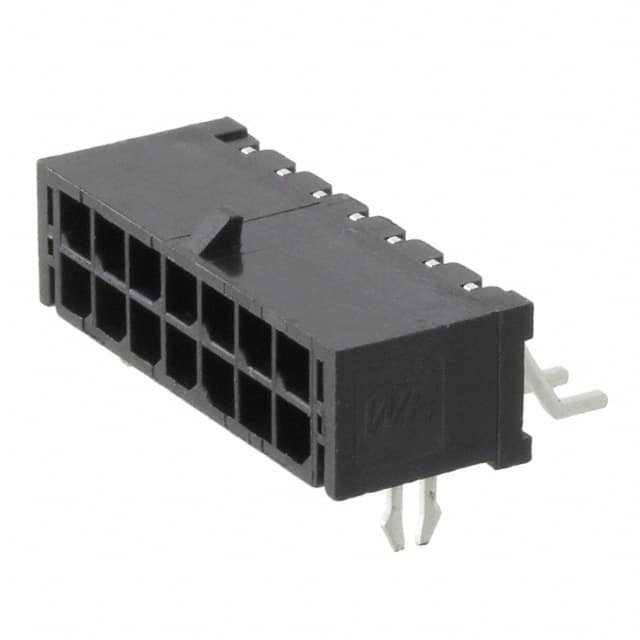

The Würth Elektronik 662014230822 is a 14-position, 2-row, 3.00mm pitch right-angle surface mount male header designed for board-to-cable/wire connections. It features a shrouded design with a locking ramp and integrated board lock for secure mating and retention. The contacts are copper alloy with tin plating, and the insulator is black LCP rated UL94 V-0.
Electrically, the header is rated for 5A maximum current and 250V AC working voltage, with a contact resistance of 10mOhm max and insulation resistance greater than 1000MOhm. It withstands 1500V AC dielectric strength for 1 minute. The operating temperature range is -40°C to 105°C, and it is qualified for 25 mating cycles.
Packaged in tubes, this component is RoHS compliant and lead-free. It is suitable for automated SMT assembly and is certified under UL standard E323964.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.19 | $2.19 |
| 10+ | $2.15 | $2.15 |
| 120+ | $1.98 | $1.98 |
| 264+ | $1.74 | $1.74 |
| 504+ | $1.61 | $1.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
14 positions (2 rows, 7 per row).
3.00mm (0.118 inches).
5A maximum.
250V AC maximum.
Surface Mount, Right Angle.
-40°C to 105°C.
RoHS compliant, lead-free, UL94 V-0 flammability rating, and UL certified (E323964).
