| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
353 pcs
|
353 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
353 pcs
|
353 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

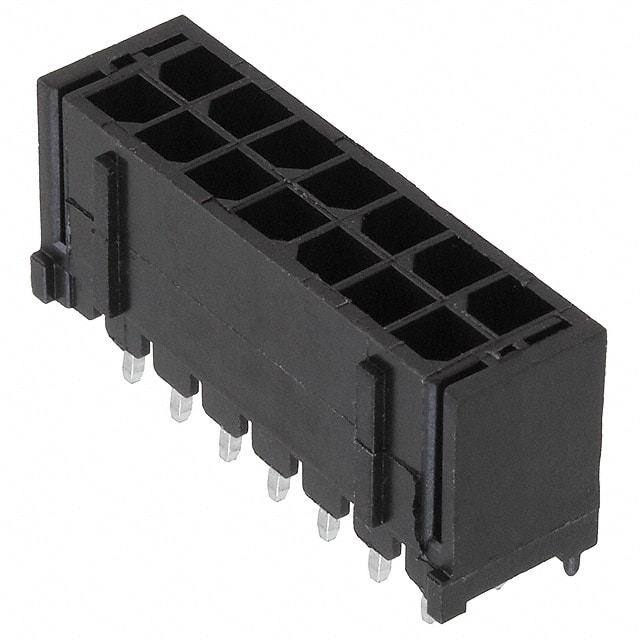

The Würth Elektronik 66201421122 is a 14-position, dual row, shrouded header from the WR-MPC3 series. It features a 3.00mm pitch and 3.00mm row spacing, with male square pins made of copper alloy and tin-plated contacts. The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
This connector is designed for board-to-cable/wire applications and includes a locking ramp for secure mating. It is rated for 5A current and 250VAC working voltage, with an operating temperature range of -40°C to 105°C. Electrical characteristics include insulator resistance greater than 1000 MΩ, dielectric withstanding voltage of 1500 VAC, and contact resistance of 10 mΩ maximum.
The component is through hole mounted with kinked pin, solder termination. It is packaged in a tube and is RoHS compliant. The design supports up to 25 mating cycles.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
| 10+ | $1.21 | $1.21 |
| 112+ | $1.12 | $1.12 |
| 280+ | $0.98 | $0.98 |
| 504+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.00mm.
It has 14 positions arranged in 2 rows.
The current rating is 5A.
The voltage rating is 250V.
Through hole mounting with kinked pin, solder termination.
Yes, it is RoHS compliant.
-40°C to 105°C.
