662012235922 Würth Elektronik 662012235922 is a 12-position, dual row, 3.00mm pitch shrouded header with male pins, surface mount, rated for 5A and 250V.
Mfr Part #:

662012235922

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 662012235922 is a 12-position, dual row, 3.00mm pitch shrouded header with male pins, surface mount, rated for 5A and 250V.
✓ Total Stock: 8 pcs
$ Price Range: $1.39 - $1.89

662012235922 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

662012235922 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

662012235922 Description

Short technical summary and product information.

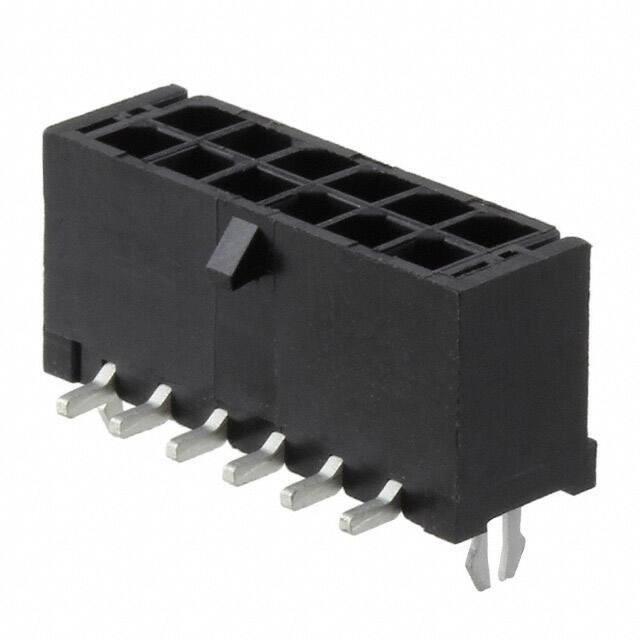

The Würth Elektronik 662012235922 is a 12-position, dual row, 3.00mm pitch male pin header designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a locking ramp for secure mating. The header is surface mount with solder termination and includes a board lock for additional mechanical retention.



Electrical ratings include a current rating of 5A and a voltage rating of 250V AC. The insulator is made of black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. Contacts are copper alloy with tin plating, rated for 25 mating cycles. The operating temperature range is -40°C to 105°C.



Packaging is in tube. The component is RoHS compliant and lead free.

662012235922 Quick Information

Product Type: Header, Male Pins
Series: WR-MPC3
Canonical Name: Würth Elektronik 662012235922 - 3.00mm Male Dual Row SMT Vertical Header, 12 Positions, Shrouded
Subcategory: Shrouded Header

662012235922 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

662012235922 Estimated Pricing

Qty Low High
1+ $1.89 $1.89
10+ $1.85 $1.85
112+ $1.71 $1.71
252+ $1.49 $1.49
504+ $1.39 $1.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

662012235922 Features

  • 12 positions, dual row, 3.00mm pitch.
  • Shrouded 4-wall design with locking ramp.
  • Surface mount with solder termination.
  • Rated for 5A and 250V AC.
  • UL94 V-0 rated LCP insulator.

662012235922 Applications

  • Board-to-cable/wire interconnect applications.
  • General purpose electronic equipment.
  • Industrial control and automation systems.
  • Consumer electronics and appliances.

662012235922 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 662012235922 have?

12 positions, arranged in 2 rows.

What is the pitch of this header?

3.00mm (0.118 inches).

What is the current rating?

5A.

What is the voltage rating?

250V AC.

What is the mounting type?

Surface mount (SMT).

Is the 662012235922 RoHS compliant?

Yes, it is RoHS compliant and lead free.

What is the operating temperature range?

-40°C to 105°C.
