Mfr Part #:

662012230822

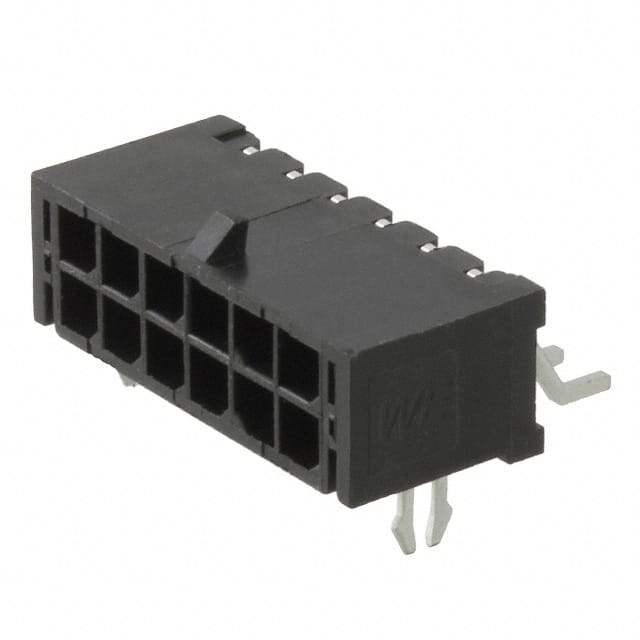

This is a 12-position, 2-row, 3.00mm pitch shrouded header with male pins, surface mount right angle, rated 5A at 250V. It features a locking ramp for secure mating and board lock for retention.

✓ Total Stock: 106 pcs

$ Price Range: $1.75 - $2.38

662012230822 Available from 2 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	75 pcs On Request	75 pcs	On Request	1	On Request	On Request	18+	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	31 pcs On Request	31 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

662012230822 Description

Short technical summary and product information.

The 662012230822 is a 12-position, 2-row, 3.00mm pitch shrouded header from Würth Elektronik. It features male pin contacts made of copper alloy with tin plating, housed in a black liquid crystal polymer (LCP) insulator rated UL94 V-0. The connector is surface mount, right angle orientation, with through-hole retention metal clips (board lock) and a locking ramp fastening system. It is designed for board-to-cable/wire applications.

Electrically, it is rated for 5A current and 250V AC working voltage. Contact resistance is 10 mOhm max, insulation resistance >1000 MOhm, and dielectric withstanding voltage is 1500V AC. The operating temperature range is -40°C to 105°C. It is qualified for 25 mating cycles.

The connector is RoHS compliant and lead-free, with a JEDEC lead-free reflow soldering process. It is packaged in tube. The standard certified is E323964.

This header is suitable for general electronics equipment and should not be used in critical applications such as aerospace or medical without additional evaluation.

662012230822 Quick Information

Product Type: Header, Male Pins

Series: WR-MPC3

Canonical Name: Header, Male Pins, 12 Positions, 2 Row, 3.00mm Pitch, Surface Mount, Right Angle, Shrouded with Board Lock

Subcategory: Male Pins

662012230822 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead Free

662012230822 Estimated Pricing

Qty	Low	High
1+	$2.38	$2.38
10+	$2.33	$2.33
112+	$2.15	$2.15
252+	$1.88	$1.88
504+	$1.75	$1.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

662012230822 Features

12 positions in 2 rows with 3.00mm pitch.
Shrouded 4-wall design with locking ramp.
Rated 5A at 250V AC.
Operating temperature -40°C to 105°C.
RoHS compliant and lead-free.

662012230822 Applications

For board-to-cable/wire connections.
Used in general electronics equipment.
Suitable for industrial control systems.
Ideal for power and signal distribution.

662012230822 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

12 positions.

What is the pitch?

3.00mm (0.118")

What is the current rating?

What is the voltage rating?

250V AC

What is the mounting type?

Surface Mount, Right Angle

What is the operating temperature range?

-40°C to 105°C

What is the contact finish?

Tin

Category	Headers, Male Pins
Manufacturer Name	Würth Elektronik
Connector Type	Header
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Resistance	10 mOhm max
Contact Shape	Square
Contact Type	Male Pin
Current Rating	5A
Current Rating (Amps)	5A
Dielectric Withstanding Voltage	1500V AC
Fastening Type	Locking Ramp
Features	Board Lock
Insulation Color	Black
Insulation Height	7.37mm (0.290")
Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Resistance	>1000 MOhm
Material Flammability Rating	UL94 V-0
Mating Cycles	25 cycles
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	3.00mm (0.118")
Row Spacing	0.118" (3.00mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Tape & Reel	Yes
Termination	Solder
Voltage Rating	250V
