| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
324 pcs
|
324 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

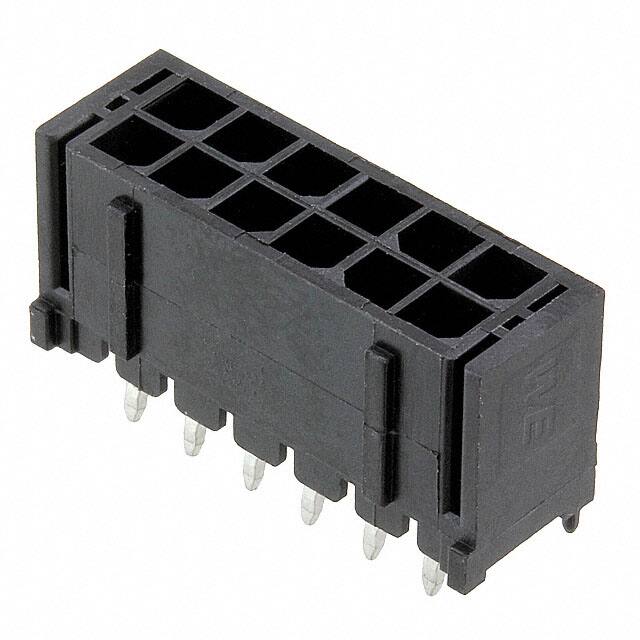

The Würth Elektronik 66201221122 is a WR-MPC3 series 3.00mm pitch male dual row vertical header designed for board-to-cable/wire applications. It features a shrouded 4-wall housing with a locking ramp for secure mating. The connector has 12 positions arranged in 2 rows with a row spacing of 3.00mm.
Electrical ratings include a current rating of 5A and a working voltage of 250VAC. Contact resistance is 10 mΩ maximum, insulator resistance exceeds 1000 MΩ, and dielectric withstanding voltage is 1500 VAC/min. The operating temperature range is -40°C to 105°C.
The header uses through hole mounting with kinked pin solder termination. Contacts are made of copper alloy with tin plating, and the insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating. The part is RoHS compliant and lead free. Packaging is in tube.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.93 | $0.93 |
| 10+ | $0.91 | $0.91 |
| 100+ | $0.84 | $0.84 |
| 250+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 12 positions arranged in 2 rows.
The pitch is 3.00mm with a row spacing of 3.00mm.
The current rating is 5A.
The working voltage is 250VAC.
It uses through hole mounting with kinked pin solder termination.
Yes, it is RoHS compliant and lead free.
The operating temperature range is -40°C to 105°C.
