| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,240 pcs
|
2240 pcs | On Request | 30 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

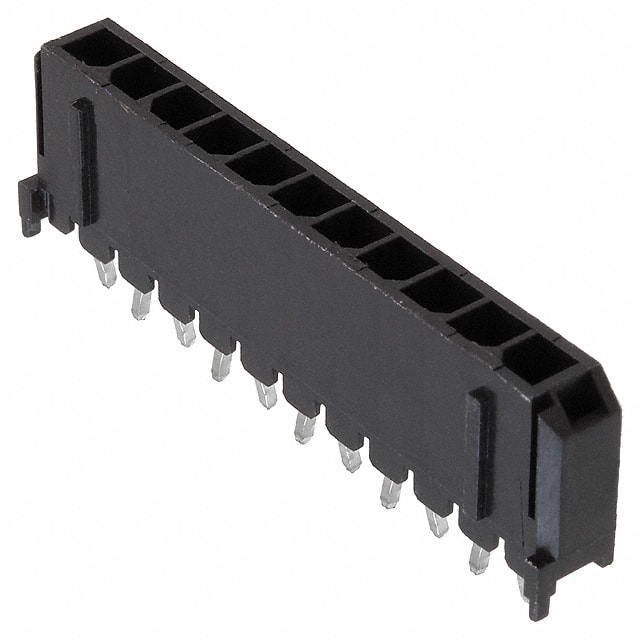

The Würth Elektronik 66201111122 is a 3.00mm pitch, single row, 11-position male pin header designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a locking ramp fastening type for secure mating. The header is through hole mounted with kinked pin solder termination, providing reliable mechanical retention.
Electrical ratings include a current rating of 5A and a voltage rating of 250V. The insulator is made of black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. Contacts are copper alloy with a tin finish, rated for 25 mating cycles. The operating temperature range is -40°C to 105°C.
The component is RoHS compliant and lead free. It is packaged in a tube. A board guide feature is included for alignment during assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.15 | $1.15 |
| 10+ | $1.13 | $1.13 |
| 112+ | $1.04 | $1.04 |
| 256+ | $0.92 | $0.92 |
| 512+ | $0.85 | $0.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.00mm.
It has 11 positions in a single row.
The current rating is 5A.
The voltage rating is 250V.
Through hole mounting with kinked pin solder termination.
Yes, it is RoHS compliant and lead free.
The operating temperature range is -40°C to 105°C.
