| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,800 pcs
|
2800 pcs | On Request | 30 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

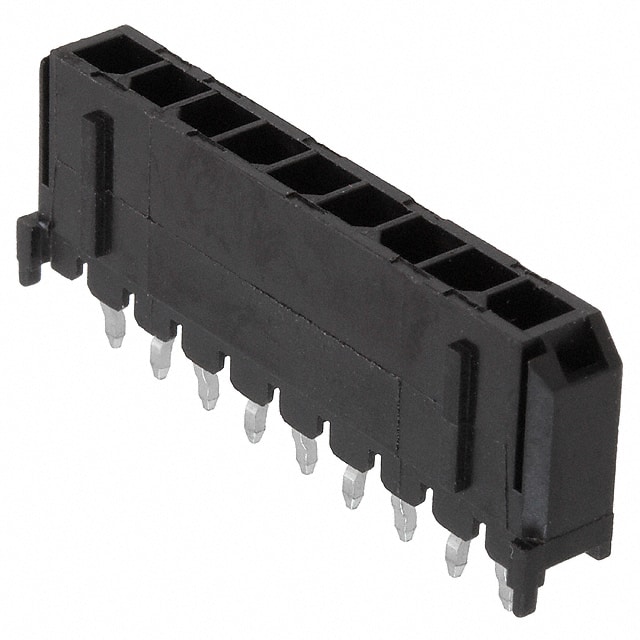

The Würth Elektronik 66200911122 is a 9-position, single row, male pin header with a 3.00mm pitch. It is designed for board-to-cable/wire applications and features a shrouded 4-wall design with a locking ramp for secure mating. The connector is through hole mounted with kinked pin solder termination.
Mechanically, the header uses a black Liquid Crystal Polymer (LCP) insulator with a UL94 V-0 flammability rating. Contacts are made of copper alloy with a tin finish and have a square shape. The insulation height is 9.91mm and the contact length is 3.18mm. It includes a board guide feature and all 9 positions are loaded.
Electrically, the connector is rated for 5A current and 250V working voltage. It has a maximum contact resistance of 10 mΩ, insulation resistance greater than 1000 MΩ, and can withstand 1500 VAC dielectric strength. The operating temperature range is -40°C to 105°C. It is rated for 25 mating cycles.
The component is RoHS compliant and Lead Free, and is packaged in a tube. The soldering process is JEDEC Lead Free Wave. This header is suitable for general purpose wire-to-board connections in industrial, consumer, and automation applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.91 | $0.91 |
| 10+ | $0.89 | $0.89 |
| 100+ | $0.83 | $0.83 |
| 260+ | $0.72 | $0.72 |
| 500+ | $0.67 | $0.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions, all loaded, in a single row.
3.00mm (0.118 inches).
5A nominal.
250V nominal.
Through hole with kinked pin solder termination.
-40°C to 105°C.
RoHS compliant, Lead Free, UL94 V-0 flammability rating.
