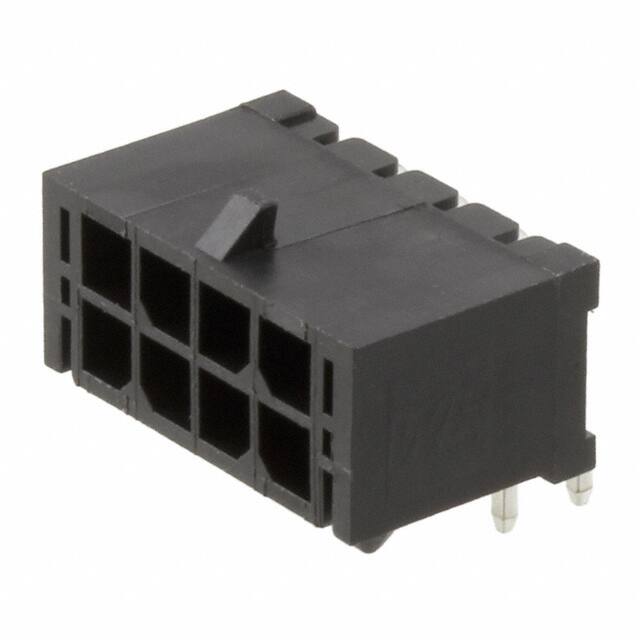

The Würth Elektronik WR-MPC3 66200821022 is a 8 position, 2 row, 3.00mm pitch male pin header designed for board-to-cable/wire applications. This shrouded connector features a right angle orientation and through hole termination with solder contacts. The housing is molded from black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating, and the contacts are made of copper alloy with a tin finish.
Electrical ratings include a 5A current carrying capacity and 250V AC working voltage. The connector is specified for an operating temperature range of -40°C to 105°C and offers a dielectric withstanding voltage of 1500V AC. Contact resistance is 10 mOhm maximum, and insulation resistance exceeds 1000 MOhm. The design includes a locking ramp fastening system and an integrated board lock feature.
Packaged in tube packaging, the header is suitable for wave soldering processes compliant with JEDEC lead free requirements. The part is RoHS3 compliant and lead free. The insulator height measures 7.37mm and the contact length is 3.20mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.84 | $0.84 |
| 10+ | $0.82 | $0.82 |
| 114+ | $0.79 | $0.79 |
| 266+ | $0.74 | $0.74 |
| 532+ | $0.68 | $0.68 |
| 2,508+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.00mm (0.118") for both pin spacing and row spacing.
The header has 8 positions in a 2-row configuration, with all positions loaded.
The current rating is 5A.
The voltage rating is 250V AC.
Through hole, right angle with solder termination.
The operating temperature range is -40°C to 105°C.
