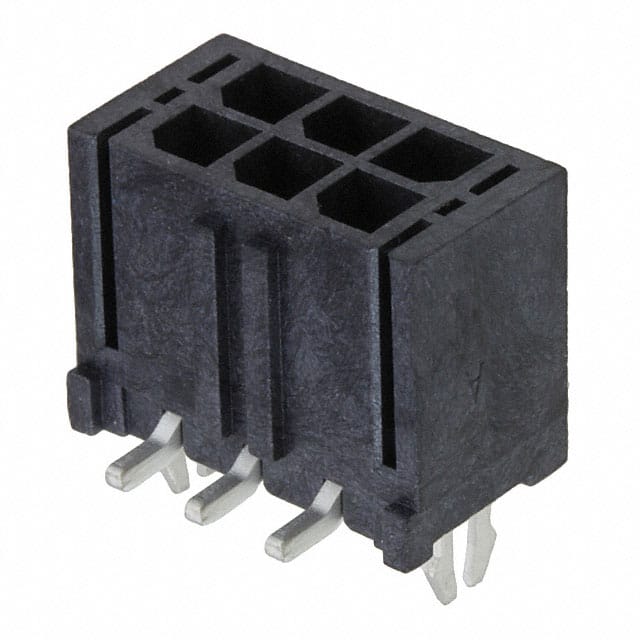

662006235922 Würth Elektronik 662006235922 is a 6 position, 2 row, 3.00mm pitch surface mount header with male pins, shrouded with locking ramp and board lock feature.
Mfr Part #:

662006235922

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 662006235922 is a 6 position, 2 row, 3.00mm pitch surface mount header with male pins, shrouded with locking ramp and board lock feature.
✓ Total Stock: 38 pcs
$ Price Range: $0.91 - $1.23

662006235922 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
38 pcs
On Request
38 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

662006235922 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

662006235922 Description

Short technical summary and product information.

The Würth Elektronik 662006235922 is a 6 position, dual row, 3.00mm pitch male pin header designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a locking ramp for secure mating and a board lock for reliable attachment to the PCB.



This surface mount header is rated for 5A current and 250V AC voltage, with a contact resistance of 10 mOhm max and insulation resistance greater than 1000 MOhm. The contacts are made of copper alloy with tin plating, and the insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.



The header is packaged in tube and is RoHS and lead-free compliant. It is suitable for use in general electronics equipment within an operating temperature range of -40°C to 105°C.

662006235922 Quick Information

Product Type: Header, Male Pins
Series: WR-MPC3
Canonical Name: Würth Elektronik 662006235922 6 Position 3mm Pitch Dual Row SMT Vertical Header with Board Lock
Subcategory: Shrouded Header

662006235922 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

662006235922 Estimated Pricing

Qty Low High
1+ $1.23 $1.23
10+ $1.21 $1.21
96+ $0.98 $0.98
288+ $0.91 $0.91

Estimated market price range - modelled values for guidance only, not live distributor offers.

662006235922 Features

  • 6 position dual row 3.00mm pitch header.
  • Surface mount with board lock feature.
  • Shrouded 4-wall design with locking ramp.
  • Rated for 5A current and 250V voltage.
  • UL94 V-0 flammability rated LCP insulator.

662006235922 Applications

  • Board-to-cable/wire connections in general electronics.
  • Industrial control and automation equipment.
  • Consumer electronics requiring secure mating.

662006235922 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the 662006235922 header?

The pitch is 3.00mm.

What is the current rating of this connector?

The current rating is 5A.

What is the voltage rating of the 662006235922?

The voltage rating is 250V AC.

What mounting type does this header use?

It uses surface mount (SMT) termination with solder.

Is the 662006235922 RoHS compliant?

Yes, it is RoHS3 compliant and lead-free.

What is the operating temperature range?

The operating temperature range is -40°C to 105°C.

What is the insulation material and flammability rating?

The insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
