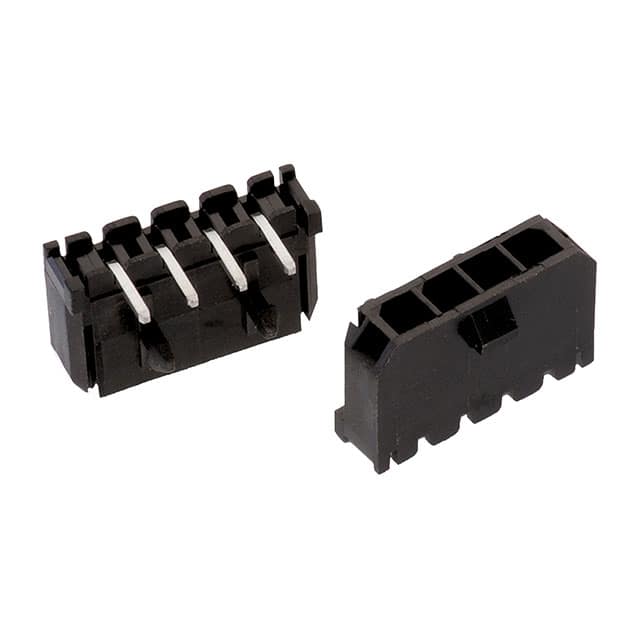

66200411022 WR-MPC3 single row male header from Würth Elektronik with 4 positions at 3.00mm pitch. Right angle through hole mounting with locking ramp and tin plated contacts.
Mfr Part #:

66200411022

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
WR-MPC3 single row male header from Würth Elektronik with 4 positions at 3.00mm pitch. Right angle through hole mounting with locking ramp and tin plated contacts.
✓ Total Stock: 43,388 pcs
$ Price Range: $0.84 - $1.04

66200411022 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
43,388 pcs
On Request
43388 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

66200411022 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Durability
Fastening Type
Features
Halogen Free
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
Withstanding Voltage
View Similar Products (0)

66200411022 Description

Short technical summary and product information.

The Würth Elektronik 66200411022 is a WR-MPC3 series single row male header designed for board to cable/wire connections. It features 4 positions on a 3.00mm pitch with a right angle orientation and through hole termination. The contacts are made of copper alloy with a tin finish, and the insulator is liquid crystal polymer (LCP) rated UL94 V-0.



Key electrical ratings include a current rating of 5A, voltage rating of 250VAC, operating temperature range of -40°C to 105°C, contact resistance of 10mΩ maximum, insulation resistance of 1000MΩ minimum, and a withstanding voltage of 1500VAC. The header is fully shrouded with a 4-wall design and includes a locking ramp for secure mating, plus a board guide feature for alignment.



The component is RoHS3 compliant, REACH conform, and halogen free per IEC 61249-2-21. It carries UL approval E323964 and is suitable for use in general electronic equipment. The manufacturer does not authorize use in safety-critical applications without specific agreement.

66200411022 Quick Information

Product Type: Header, Male Pins
Series: WR-MPC3
Canonical Name: WR-MPC3 Single Row Male Header, Right Angle, Through Hole, 4 Positions, 3.00mm Pitch, Tin Plated
Subcategory: Right Angle Header

66200411022 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Conform
Lead Free: Yes

66200411022 Estimated Pricing

Qty Low High
1+ $1.04 $1.04
112+ $0.95 $0.95
224+ $0.90 $0.90
560+ $0.84 $0.84

Estimated market price range - modelled values for guidance only, not live distributor offers.

66200411022 Features

  • 4 positions in single row at 3.00mm pitch.
  • Right angle through hole mounting style.
  • Shrouded 4-wall design with locking ramp.
  • Rated for 5A current and 250VAC voltage.
  • Operating temperature range -40°C to 105°C.

66200411022 Applications

  • Board to cable/wire connections in general electronics.
  • Power supply and signal distribution applications.
  • Industrial control and automation equipment.
  • Consumer electronics requiring secure mating.

66200411022 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 66200411022 have?

4 positions in a single row.

What is the pitch of this header?

3.00mm (0.118 inches).

What is the current rating?

5A.

What is the voltage rating?

250VAC.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-40°C to 105°C.

Is the 66200411022 RoHS compliant?

Yes, RoHS3 compliant.
