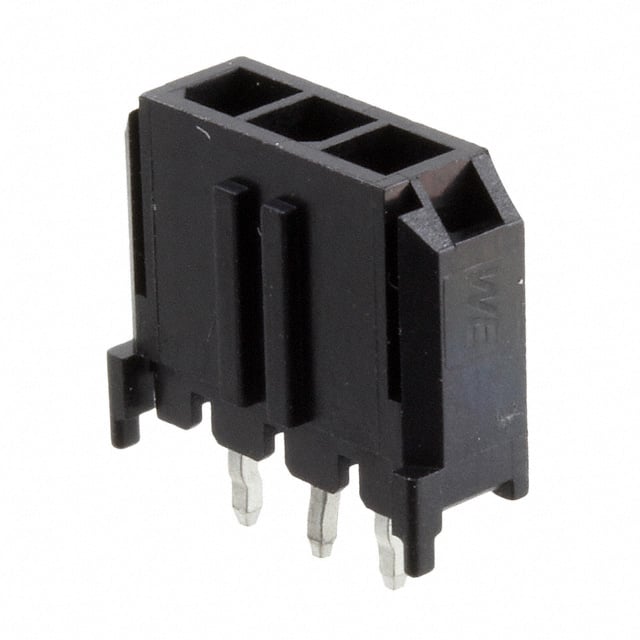

66200311122 3 position single row male header with 3.00mm pitch, shrouded, through hole mounting, and kinked pin solder termination. Tin plated copper alloy contacts with 5A current rating and 250V voltage rating.
Mfr Part #:

66200311122

Available from 3 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
3 position single row male header with 3.00mm pitch, shrouded, through hole mounting, and kinked pin solder termination. Tin plated copper alloy contacts with 5A current rating and 250V voltage rating.
✓ Total Stock: 303 pcs
$ Price Range: $0.27 - $0.36

66200311122 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
240 pcs
On Request
240 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
33 pcs
On Request
33 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

66200311122 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

66200311122 Description

Short technical summary and product information.

The Würth Elektronik 66200311122 is a 3-position single row male header with a 3.00mm pitch. It features a shrouded 4-wall design with a locking ramp for secure mating. The header is mounted through hole with kinked pin solder termination, providing reliable mechanical retention.



The header is rated for 5A current and 250V voltage, with a maximum contact resistance of 10 mOhm and minimum insulation resistance of 1000 MOhm. It can withstand 1500 VAC dielectric strength. The operating temperature range is -40°C to 105°C. The insulation material is Liquid Crystal Polymer (LCP) in black, with UL94 V-0 flammability rating. The contacts are copper alloy with tin plating, rated for 25 mating cycles.



This header is suitable for board-to-cable/wire applications and includes a board guide feature. Packaging is in tubes. The product is RoHS compliant and lead free.

66200311122 Quick Information

Product Type: Header
Series: WR-MPC3
Canonical Name: 3.00mm Pitch Single Row 3-Position Male Header, Shrouded, Through Hole, Kinked Pin
Subcategory: Shrouded Header

66200311122 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

66200311122 Estimated Pricing

Qty Low High
1+ $0.36 $0.36
10+ $0.35 $0.35
100+ $0.33 $0.33
272+ $0.29 $0.29
544+ $0.27 $0.27

Estimated market price range - modelled values for guidance only, not live distributor offers.

66200311122 Features

  • 3.00mm pitch single row male header.
  • Shrouded 4-wall design with locking ramp.
  • Rated for 5A current and 250V voltage.
  • Through hole kinked pin solder termination.
  • RoHS compliant and lead free.

66200311122 Applications

  • Board-to-cable/wire connections in industrial electronics.
  • Power and signal distribution in compact designs.
  • General purpose interconnection in control systems.

66200311122 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 66200311122 have?

3 positions.

What is the pitch of the 66200311122?

3.00 mm.

What is the current rating of the 66200311122?

5A.

What is the voltage rating of the 66200311122?

250V.

What is the mounting type for the 66200311122?

Through hole.

What is the operating temperature range of the 66200311122?

-40°C to 105°C.

What is the insulation material used in the 66200311122?

Liquid Crystal Polymer (LCP) with UL94 V-0 flammability rating.
