| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Allowable Operation Temperature | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Features | |
| Filter Type | |
| Housing Material | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Panel Thickness | |
| Panel Thickness (Snap-in) | |
| Panel Thickness (Unspecified condition) | |
| Pin Temperature | |
| Protection class I | |
| Rating (Nominal @ IEC) | |
| Rating (Nominal @ UL/CSA) | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| UL | |
| VDE | |
| Voltage Rating | |
| Wire Gauge |

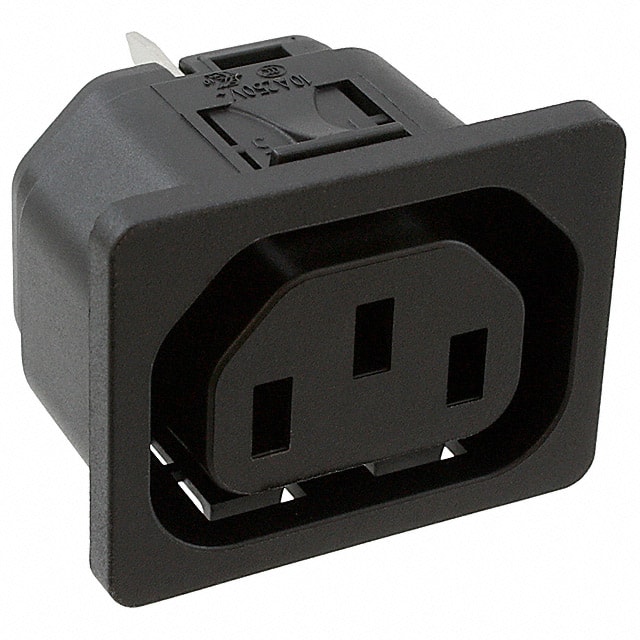

The Schurter 6610.4014 is an IEC 320-2-2/F appliance outlet power entry module designed for panel mount snap-in installation. It features IDC terminals for efficient wiring of solid wires (14-12 AWG or 1-2.5 mm²), reducing labor costs. The connector is rated 10A/250VAC per IEC and 15A/250VAC per UL/CSA, with a pin temperature of 70°C. It offers IP40 ingress protection on the front side and is suitable for protection class I equipment. The housing is made of black thermoplastic with UL94 V-0 flammability rating. Additional features include a light pipe and terminating cover. This module is ideal for power distribution units (PDUs) and other industrial applications requiring reliable IEC connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.12 | $3.12 |
| 10+ | $2.49 | $2.49 |
| 50+ | $2.35 | $2.35 |
| 100+ | $2.24 | $2.24 |
| 250+ | $1.96 | $1.96 |
| 500+ | $1.89 | $1.89 |
| 1,000+ | $1.76 | $1.76 |
| 5,000+ | $1.66 | $1.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10A (IEC) / 15A (UL/CSA).
250VAC.
3 positions.
Panel mount, snap-in.
IDC terminals.
IP40 front side.
CCC, cULus, ENEC.
