| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,050 pcs
|
2050 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Body Material | |
| Body Plating | |
| Cable Group | |
| Center Contact Material | |
| Center Contact Plating | |
| Connector Style | |
| Connector Type | |
| Contact Resistance (Maximum @ After test) | |
| Contact Resistance (Maximum @ DC 0.2 V / 1 A) | |
| Contact Termination | |
| Fastening Type | |
| Features | |
| Ferrule Material | |
| Ferrule Plating | |
| Force to Disengage | |
| Force to Engage | |
| Frequency | |
| Gender | |
| Halogen Free | |
| Housing Color | |
| Impedance | |
| Insulator Color | |
| Insulator Material | |
| Interface | |
| Lead Style | |
| Mating Cycles | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Ports | |
| Operating Temperature | |
| Orientation | |
| SVHC Present | |
| Shield Termination | |
| Snap Ring Material | |
| Snap Ring Plating | |
| Termination Style | |
| Withstanding Voltage |

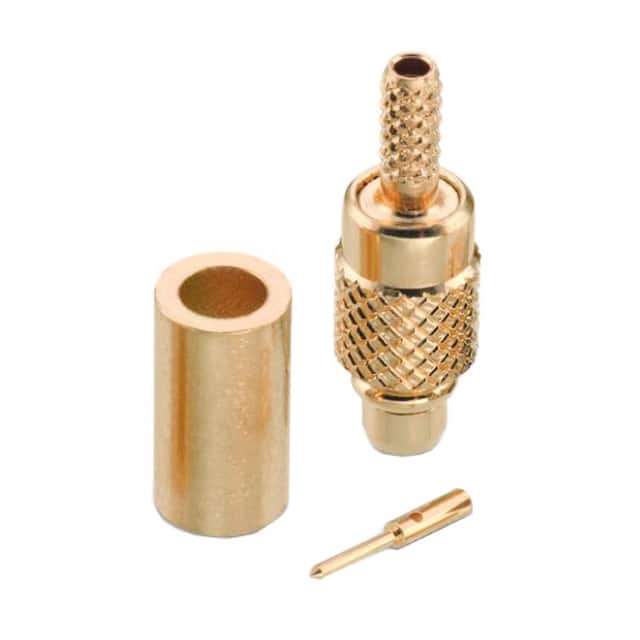

This is an MMCX straight plug connector from Würth Elektronik, part number 66046011210420. It features a male pin contact and is designed for free hanging (in-line) mounting with snap-on fastening.
The connector has a 50 Ohm impedance and supports frequencies up to 3 GHz. It is compatible with RG-178 and RG-196 cables. Both contact and shield terminations are crimp type. The body and center contact are brass with gold plating over nickel. The insulator is PTFE (white).
The connector includes an EMI ring and meets IEC 61169-52 interface standard. It has an operating temperature range of -55 to +155 °C and a minimum of 500 mating cycles. Engage force is 18 N max, disengage force 6 N min.
This connector is suitable for RF applications requiring a compact, reliable coaxial connection. The gold plating ensures good conductivity and corrosion resistance.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.04 | $5.04 |
| 25+ | $4.54 | $4.54 |
| 50+ | $4.23 | $4.23 |
| 100+ | $3.93 | $3.93 |
| 250+ | $3.63 | $3.63 |
| 500+ | $3.30 | $3.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free hanging (in-line) mounting.
MMCX.
50 Ohm.
3 GHz.
RG-178 and RG-196.
-55 to +155 °C.
Yes, RoHS compliant per 2011/65/EU.
