| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Contact Material | |
| Current Rating | |
| Filter Type | |
| Housing Material | |
| Ingress Protection | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

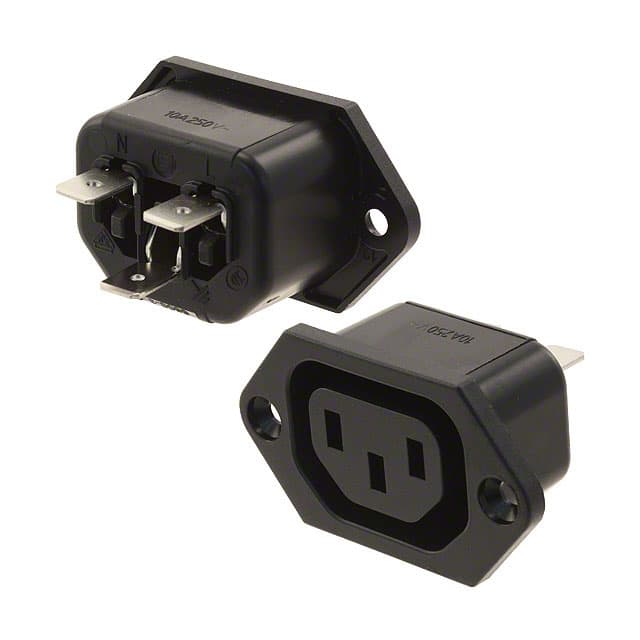

The Schurter Inc. 6600.3300 is a standard IEC 320-2-2/F power entry receptacle designed for panel mounting. It accepts a 3-position female socket configuration and is terminated with 0.250 inch (6.3mm) quick connect terminals. This unfiltered commercial-grade receptacle is rated for 10A at 250VAC and is compliant with UL94 V-0 flammability rating.
The housing is constructed from thermoplastic polyamide 6.6, and contacts are brass with tin plating. The unit requires a rectangular panel cutout of 32.50mm x 24.80mm and is secured via a flange mount. It offers IP30 ingress protection, suitable for indoor commercial equipment.
This component is part of the Schurter 6600 series and carries approvals from CCC, cULus, and ENEC. It does not accommodate a fuse. The quick connect termination simplifies wiring in power supply and distribution applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.09 | $2.09 |
| 10+ | $1.67 | $1.67 |
| 50+ | $1.58 | $1.58 |
| 100+ | $1.50 | $1.50 |
| 250+ | $1.41 | $1.41 |
| 500+ | $1.34 | $1.34 |
| 1,000+ | $1.28 | $1.28 |
| 2,500+ | $1.21 | $1.21 |
| 5,000+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 A.
250 VAC.
3 positions.
Panel Mount, Flange.
Quick Connect - 0.250 inch (6.3mm).
IP30.
CCC, cULus, ENEC.
