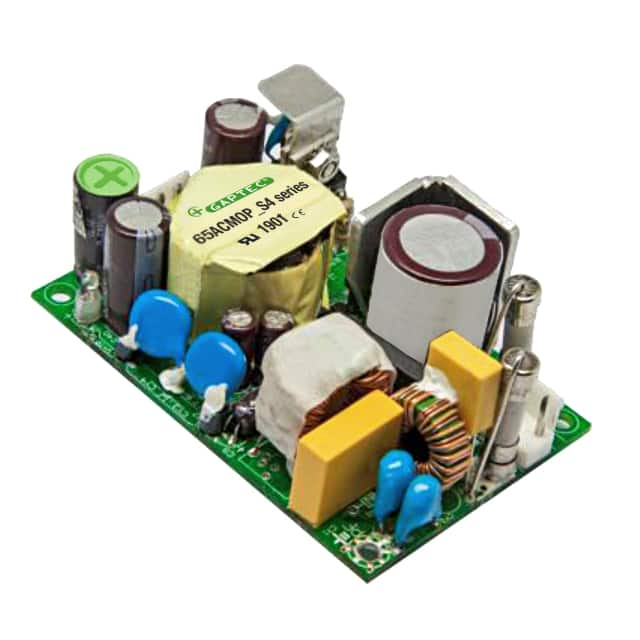

The GAPTEC Electronic 65ACMOP_48S4 is a 65W open frame AC-DC power supply designed for ITE and medical applications. It operates with a universal input voltage range of 90-264 VAC and provides a regulated 48V output at up to 1.354A.
This converter boasts high efficiency, typically exceeding 87% at 115VAC input. It includes essential protection features such as short circuit protection (SCP), over load protection (OLP), and over voltage protection (OVP). The unit is designed for through-hole mounting and has dimensions of 76.2mm x 50.8mm x 28.7mm.
Key specifications include a hold-up time of 10ms at 75% load and 115VAC. The operating temperature range is -20°C to 70°C with derating. It meets UL 60950-1 and Medical 60601-1 standards, offering 4kVAC isolation.
This series is suitable for critical applications requiring reliable power conversion, offering compact size and high power density. It meets DOE level VI and ErP Tier 1 requirements.
The output voltage is 48V.
The maximum output current is 1.354A.
The input voltage range is 90 to 264 VAC.
The efficiency is typically greater than 87% at 115VAC.
The operating temperature range is -20°C to 70°C, with derating.
It includes short circuit protection (SCP), over load protection (OLP), and over voltage protection (OVP).
It is an open frame type with through-hole mounting.
