| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Flat Flex Type | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Pitch | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

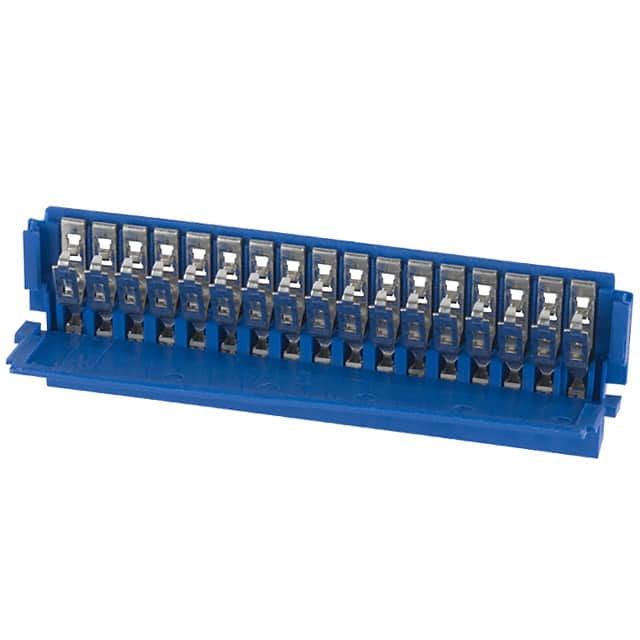

The 65801-017 is a 17-position FFC/FPC receptacle connector from Amphenol ICC. It features a 2.54mm pitch and IDC termination for quick and reliable assembly without soldering. The connector is designed for free hanging (in-line) mounting, making it suitable for cable-to-board connections in tight spaces.
Contacts are made of copper nickel alloy with tin plating, ensuring good conductivity and corrosion resistance. The housing is constructed from thermoplastic with a UL94 V-0 flammability rating, providing safety in various environments. This connector supports FFC/FPC cables with a thickness of 0.33mm.
Electrical rating is 500V, and the operating temperature range spans from -65°C to 105°C, allowing use in harsh conditions. The IDC termination simplifies manufacturing by eliminating the need for separate crimping or soldering steps.
17 positions.
2.54mm.
500V.
Free hanging (in-line).
IDC.
-65°C to 105°C.
Tin.
