| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,428 pcs
|
1428 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

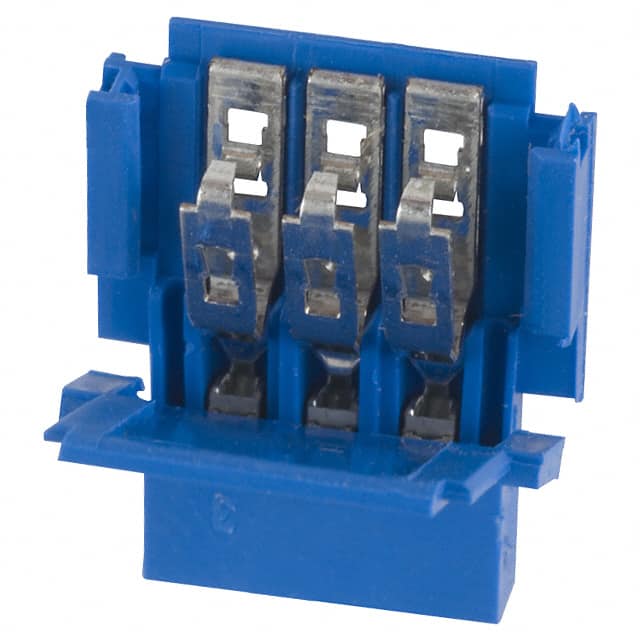

This is a FFC/FPC connector from Amphenol ICC, part number 65801-003LF. It is a 3-position receptacle with a 2.54mm pitch, designed for free hanging (in-line) mounting. The termination style is solder. It features a slide lock for secure connection.
The connector accommodates FFC and FPC cables with thicknesses of 0.30mm and 0.33mm, and supports both straight and tapered cable ends. It includes solder retention and zero insertion force (ZIF) for ease of use.
Electrical rating is 500V. Operating temperature range is -65°C to 105°C. Housing is thermoplastic with UL94 V-0 flammability rating. Contacts are copper nickel alloy with tin finish.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.94 | $0.94 |
| 10+ | $0.82 | $0.82 |
| 25+ | $0.78 | $0.78 |
| 100+ | $0.77 | $0.77 |
| 250+ | $0.73 | $0.73 |
| 500+ | $0.69 | $0.69 |
| 1,000+ | $0.64 | $0.64 |
| 4,896+ | $0.61 | $0.61 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions
2.54mm
500V
Free Hanging (In-Line)
Tin
Yes, it features ZIF and slide lock.
UL94 V-0
