| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,016 pcs
|
2016 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Housing Material | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

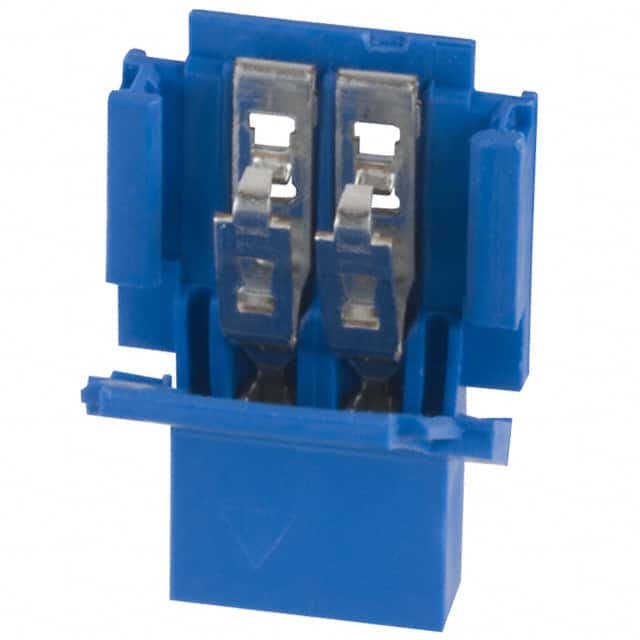

The Amphenol ICC 65801-002LF is a 2-position receptacle connector designed for flat flexible cables (FFC) and flexible printed circuits (FPC). It features a 2.54mm (0.100") pitch and supports a cable end type of notched with an FFC thickness of 0.33mm. The connector utilizes a zero insertion force (ZIF) mechanism with a slide lock for secure cable retention.
This connector is designed for free hanging (in-line) mounting with solder termination. It includes a solder retention feature for reliable mechanical attachment. The housing is made of thermoplastic material with a UL94 V-0 flammability rating, and the contacts are made of copper nickel alloy with a tin finish.
Electrically, the connector is rated for 500V. It is capable of operating over a temperature range of -65°C to 105°C. This part is RoHS3 compliant and unaffected by REACH (unverified compliance data).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.95 | $0.95 |
| 10+ | $0.81 | $0.81 |
| 25+ | $0.68 | $0.68 |
| 100+ | $0.66 | $0.66 |
| 250+ | $0.62 | $0.62 |
| 500+ | $0.58 | $0.58 |
| 1,000+ | $0.51 | $0.51 |
| 2,016+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 65801-002LF has 2 positions.
The pitch is 2.54mm (0.100 inches).
The voltage rating is 500V.
Free hanging (in-line) mounting with solder termination.
Yes, it features zero insertion force (ZIF) with a slide lock.
-65°C to 105°C.
