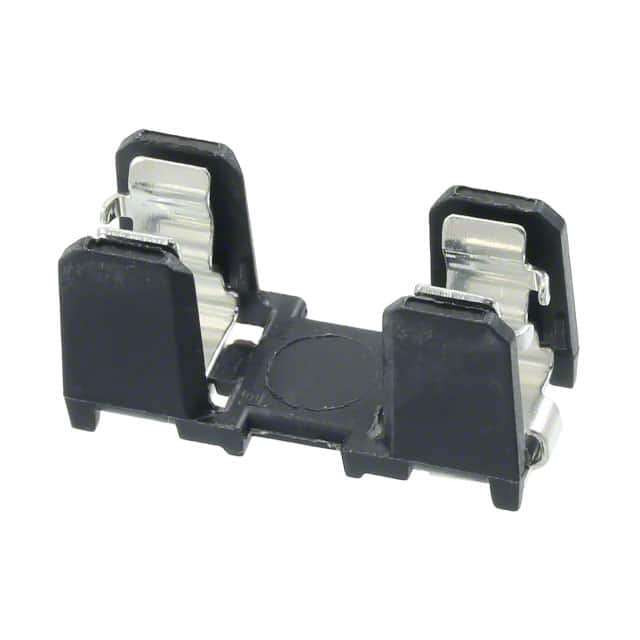

The Littelfuse 65800001109 is a surface mount fuseholder block designed for 5mm x 20mm cartridge fuses. It is part of the 658 series and features a compact, molded base for reliable circuit protection.
Key specifications: Rated voltage is 500V for UL/CSA and VDE applications. Current rating is 16A per UL and 10A per VDE. The fuseholder has a contact resistance of less than 5 mΩ at 20 mV and a dielectric strength greater than 3 kV. It operates over a temperature range of -40°C to +85°C.
Design and application: The J-Lead termination style facilitates surface mount assembly. The block is made with UL94 V-0 rated materials and tin-plated copper alloy contacts for solderability. It is suitable for use in various electronic systems requiring overcurrent protection, such as power supplies, industrial controls, and consumer electronics.
Packaging: Supplied in tape and reel packaging with a standard quantity of 400 pieces. The fuseholder is RoHS compliant and REACH unaffected, though compliance confidence is low and should be verified.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.09 | $4.09 |
| 5+ | $3.64 | $3.64 |
| 10+ | $3.35 | $3.35 |
| 50+ | $2.79 | $2.79 |
| 100+ | $2.40 | $2.40 |
| 250+ | $1.95 | $1.95 |
| 400+ | $1.79 | $1.79 |
| 800+ | $1.73 | $1.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Littelfuse 65800001109 has a UL current rating of 16A and a VDE current rating of 10A.
The fuseholder is rated for 500V for both UL/CSA and VDE applications.
It accepts 5mm x 20mm cartridge fuses.
Surface mount with J-Lead terminals.
-40°C to +85°C.
The datasheet indicates RoHS compliance, but it is unverified.
Supplied in tape and reel packaging with 400 pieces per reel.
