| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| Tape & Reel | |
| Type |

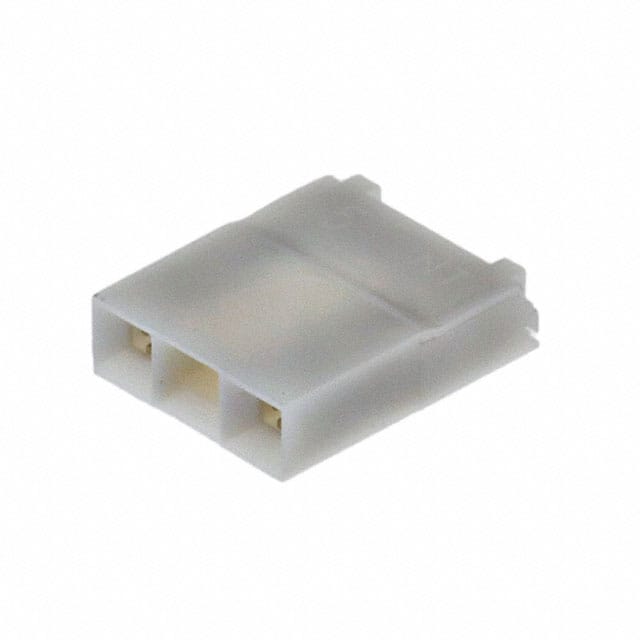

The 65771-001LF from Amphenol ICC is a 2-position (1x2) closed top shunt jumper designed for use on 5.08mm pitch header pins. It features female sockets with a gold or gold GXT contact finish and a contact thickness of 40.0 microinches. The housing is made of white polyester thermoplastic rated UL94 V-0 for flammability. This jumper is rated for a continuous current of 2.5A, making it suitable for low-current configuration and selection applications. Typical uses include PCB configuration, address selection, and enable/disable functions without soldering.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.16 | $2.16 |
| 10+ | $1.93 | $1.93 |
| 25+ | $1.72 | $1.72 |
| 100+ | $1.64 | $1.64 |
| 250+ | $1.54 | $1.54 |
| 500+ | $1.46 | $1.46 |
| 1,000+ | $1.39 | $1.39 |
| 2,500+ | $1.31 | $1.31 |
| 5,000+ | $1.25 | $1.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions (1x2).
5.08mm (0.200").
2.5A.
Polyester thermoplastic, UL94 V-0.
Gold or Gold, GXT™.
White.
RoHS3 Compliant (unverified).
