65503603215301 SMA right angle plug to SMA straight bulkhead jack RF coaxial cable assembly using RG58 cable, 152.4mm length, 50Ω impedance, rated to 1GHz.
Mfr Part #:

65503603215301

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
SMA right angle plug to SMA straight bulkhead jack RF coaxial cable assembly using RG58 cable, 152.4mm length, 50Ω impedance, rated to 1GHz.
✓ Total Stock: 300 pcs
$ Price Range: $17.35 - $21.24

65503603215301 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Chanetech ✓
Non-Authorised Inventory information
300 pcs
On Request
300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

65503603215301 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
1st Connector
1st Connector Mounting Feature
1st Connector Mounting Type
1st Contact Gender
2nd Connector
2nd Connector Mounting Type
2nd Contact Gender
Automotive Grade
Body Material
Cable Impedance
Cable Type
Center Contact Material
Center Contact Plating
Color
Features
Ferrule Material
Frequency
Halogen Free
Insulator Material
Length
Medical Grade
Military Grade
Operating Temperature
Overall Impedance
Style
View Similar Products (0)

65503603215301 Description

Short technical summary and product information.

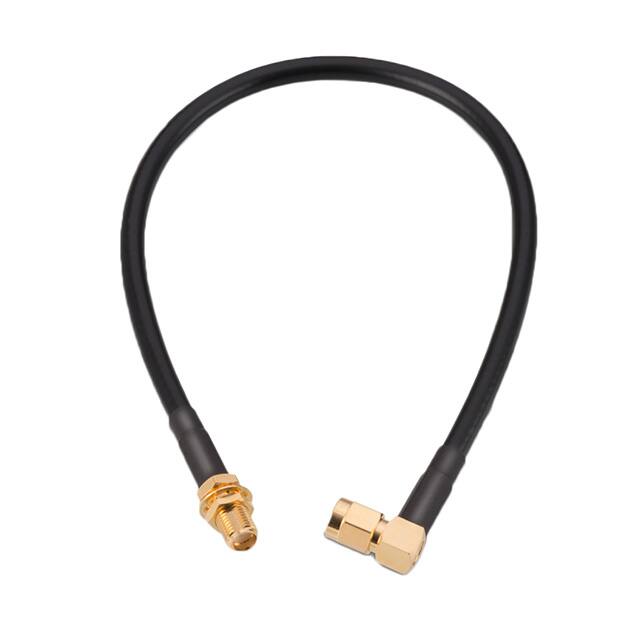

The Würth Elektronik 65503603215301 is a coaxial cable assembly featuring an SMA right angle plug on one end and an SMA straight bulkhead jack on the other. It uses RG58 flexible cable with a braided shield and a nominal outer diameter of 4.95mm. The assembly is 152.4mm long and designed for 50Ω systems.



Electrical specifications include a 50Ω overall impedance and a frequency rating of 1GHz. The cable is suitable for operation over -20°C to 80°C. The connectors are built with brass bodies and center contacts, plated with gold over nickel for corrosion resistance. PTFE insulators provide stable dielectric performance.



The bulkhead jack allows panel mounting with a maximum panel thickness of 2.8mm. The interface complies with MIL-STD-348. The cable assembly is shielded with a braid, and the outer jacket is black. This assembly is suitable for RF interconnections in test equipment, telecommunications, and other 50Ω systems.

65503603215301 Quick Information

Product Type: Coaxial Cable Assembly
Series: WR-CXASY
Canonical Name: SMA Right Angle Plug to SMA Straight Bulkhead Jack Coaxial Cable Assembly, RG58, 152.4mm
Subcategory: SMA Cable Assembly

65503603215301 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant
Lead Free: Yes

65503603215301 Estimated Pricing

Qty Low High
1+ $21.24 $21.24
5+ $20.18 $20.18
10+ $19.12 $19.12
50+ $18.06 $18.06
100+ $17.35 $17.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

65503603215301 Features

  • SMA right angle plug to SMA bulkhead jack.
  • RG58 cable with braided shielding.
  • 50Ω impedance, rated to 1GHz.
  • Brass connectors with gold over nickel plating.
  • 152.4mm cable length.

65503603215301 Applications

  • For RF interconnection in 50Ω systems.
  • Panel-mount bulkhead jack for secure mounting.
  • Right angle plug for tight space routing.
  • Suitable for test and measurement setups.

65503603215301 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of this cable assembly?

-20°C to 80°C

Is this product RoHS compliant?

RoHS3 compliant

What is the impedance of this cable assembly?

50Ω

What is the maximum frequency rating?

1 GHz

What is the cable length?

152.4 mm (6 inches)

What type of connectors are used?

SMA right angle plug to SMA straight bulkhead jack

What cable type is used?
