| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,286 pcs
|
3286 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating (Amps) | |
| Gender | |
| Height | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Type |

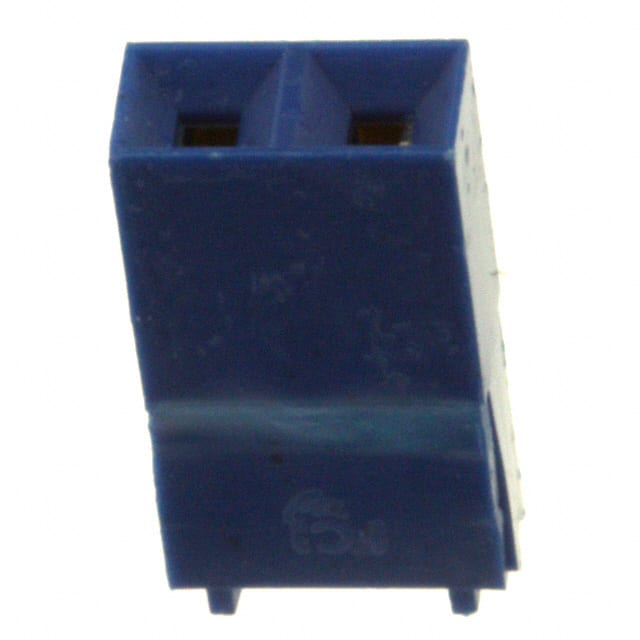

The Amphenol ICC 65474-001LF is a 2-position (1 x 2) closed top shunt jumper designed for use in rectangular connector systems. It features a 2.54mm (0.100") pitch and is rated for 3A continuous current. The shunt jumper is housed in a blue polyester material with a UL94 V-0 flammability rating, ensuring safe operation in demanding environments. Contact finish is gold or gold, GXT™ with a thickness of 40.0µin (1.02µm), providing reliable low-resistance connections. The component is through-hole mounted with solder termination. It is RoHS3 compliant and REACH unaffected, with an MSL of 1 (unlimited). This shunt jumper is suitable for programming, configuration, or bridging applications in various electronic assemblies.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.59 | $0.59 |
| 10+ | $0.48 | $0.48 |
| 25+ | $0.45 | $0.45 |
| 100+ | $0.42 | $0.42 |
| 250+ | $0.37 | $0.37 |
| 2,500+ | $0.37 | $0.37 |
| 10,000+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions (1 x 2).
2.54mm (0.100").
3A.
Through hole.
Polyester with UL94 V-0 flammability rating.
Gold or Gold, GXT™.
Yes, RoHS3 compliant (unverified).
