| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
46 pcs
|
46 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Diameter | |
| Actuator Length | |
| Actuator Type | |
| Adjustment Type | |
| Built in Switch | |
| Dielectric Withstanding Voltage | |
| Effective Electrical Angle | |
| End Voltage | |
| Independent Linearity | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Gangs | |
| Number of Turns | |
| Operating Temperature Range | |
| Output Smoothness | |
| Power (Watts) | |
| Power Rating (@ 125 °C) | |
| Power Rating (@ 70 °C) | |
| Resistance (Ohms) | |
| Resistance Shift (@ Shock) | |
| Resistance Shift (@ Vibration) | |
| Resistive Material | |
| Resolution | |
| Rotation | |
| Shock | |
| Standard Resistance Range | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Taper | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Vibration | |
| Voltage Ratio Shift | |
| Wiper Bounce (Maximum @ Shock) | |
| Wiper Bounce (Maximum @ Vibration) |

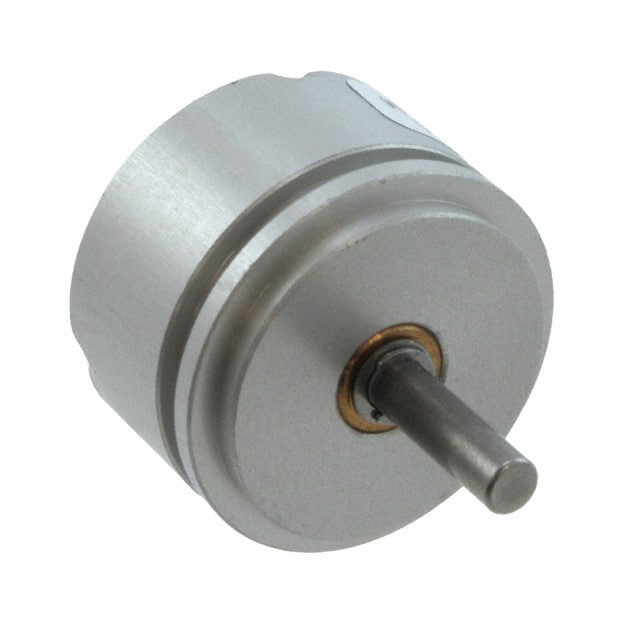

The Bourns 6539S-1-203 is a precision rotary potentiometer designed for general-purpose applications. It offers a standard resistance range of 1 kΩ to 100 kΩ, with this specific unit featuring 20 kΩ. The potentiometer has a total resistance tolerance of ±15% and a linear taper.
Key electrical characteristics include an effective electrical angle of 340°, an output smoothness of 0.1%, and a power rating of 1.0 watt at +70 °C. The insulation resistance is 500 megohms minimum at 500 VDC, and it boasts essentially infinite resolution. Environmental testing shows resilience to vibration (15 G) and shock (50 G), with specified resistance and voltage ratio shifts.
This model is a servo mount potentiometer with a solder turret termination style. It has a round actuator with a length of 0.500" (12.70mm) and a diameter of 0.1248" (3.17mm). The operating temperature range is +1 °C to +125 °C, with a storage temperature range of -65 °C to +125 °C. The temperature coefficient is ±500 ppm/°C maximum over the storage temperature range.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Bourns 6539S-1-203 potentiometer has a resistance of 20k ohms.
The total resistance tolerance for the 6539S-1-203 potentiometer is ±15%.
The power rating for the Bourns 6539S-1-203 is 1.0 watt at +70 °C.
The operating temperature range for the 6539S-1-203 is +1 °C to +125 °C.
The 6539S-1-203 utilizes a servo mount.
The 6539S-1-203 potentiometer has a linear taper.
