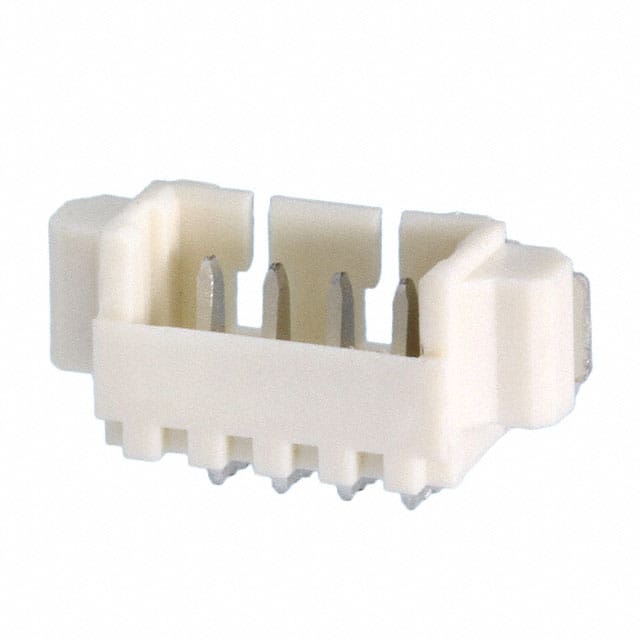

653104131822 The 653104131822 is a 1.25mm pitch, 4 position SMT right angle shrouded header from Würth Elektronik. It features a detent lock for secure mating and solder retention for reliable assembly.
Mfr Part #:

653104131822

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The 653104131822 is a 1.25mm pitch, 4 position SMT right angle shrouded header from Würth Elektronik. It features a detent lock for secure mating and solder retention for reliable assembly.
✓ Total Stock: 15 pcs
$ Price Range: $1.10 - $2.13

653104131822 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

653104131822 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

653104131822 Description

Short technical summary and product information.

The Würth Elektronik 653104131822 is a 4 position, 1.25mm pitch surface mount right angle shrouded header. It features a 4-wall shrouded design with a detent lock for secure mating to cable assemblies. The header is designed for board-to-cable/wire applications and includes solder retention features for reliable reflow soldering.



Electrical specifications include a current rating of 1A, voltage rating of 125VAC, contact resistance of 20mΩ maximum, insulator resistance greater than 100MΩ, and dielectric withstanding voltage of 250VAC. The contacts are made of copper alloy with tin plating, rated for 25 mating cycles.



The insulator is molded from polyamide (PA46/Nylon 4/6) with a UL94 V-0 flammability rating and beige color. The operating temperature range is -40°C to 85°C. The component is RoHS and lead-free compliant, and is supplied in tape and reel packaging for automated assembly.

653104131822 Quick Information

Product Type: Header connector
Canonical Name: Würth Elektronik 653104131822, 4 Position 1.25mm Pitch SMT Right Angle Shrouded Header
Subcategory: Shrouded, Right Angle Header

653104131822 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

653104131822 Estimated Pricing

Qty Low High
1+ $2.13 $2.13
10+ $1.82 $1.82
50+ $1.66 $1.66
100+ $1.34 $1.34
500+ $1.23 $1.23
1,500+ $1.10 $1.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

653104131822 Features

  • 4 position, 1.25mm pitch SMT design.
  • Right angle orientation with shrouded 4-wall housing.
  • Detent lock for secure mating to cable assemblies.
  • Rated for 1A current and 125V voltage.
  • RoHS compliant and lead-free with UL94 V-0 rating.

653104131822 Applications

  • Designed for board-to-cable/wire interconnections.
  • Used in space-constrained surface mount applications.
  • Suitable for applications requiring a detent lock mechanism.

653104131822 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

4 positions.

What is the pitch?

1.25mm

What is the current rating?

1A

What is the voltage rating?

125V

What is the mounting type?

Surface Mount, Right Angle

What is the operating temperature range?

-40°C to 85°C

Is this component RoHS compliant?

Yes, RoHS3 compliant and lead-free.
