653103124022 3-position, 1.25mm pitch surface mount male pin header from Würth Elektronik. Shrouded with detent lock, rated for 1A and 125V.
Mfr Part #:

653103124022

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
3-position, 1.25mm pitch surface mount male pin header from Würth Elektronik. Shrouded with detent lock, rated for 1A and 125V.
✓ Total Stock: 500 pcs
$ Price Range: $1.17 - $2.03

653103124022 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
500 pcs
On Request
500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

653103124022 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

653103124022 Description

Short technical summary and product information.

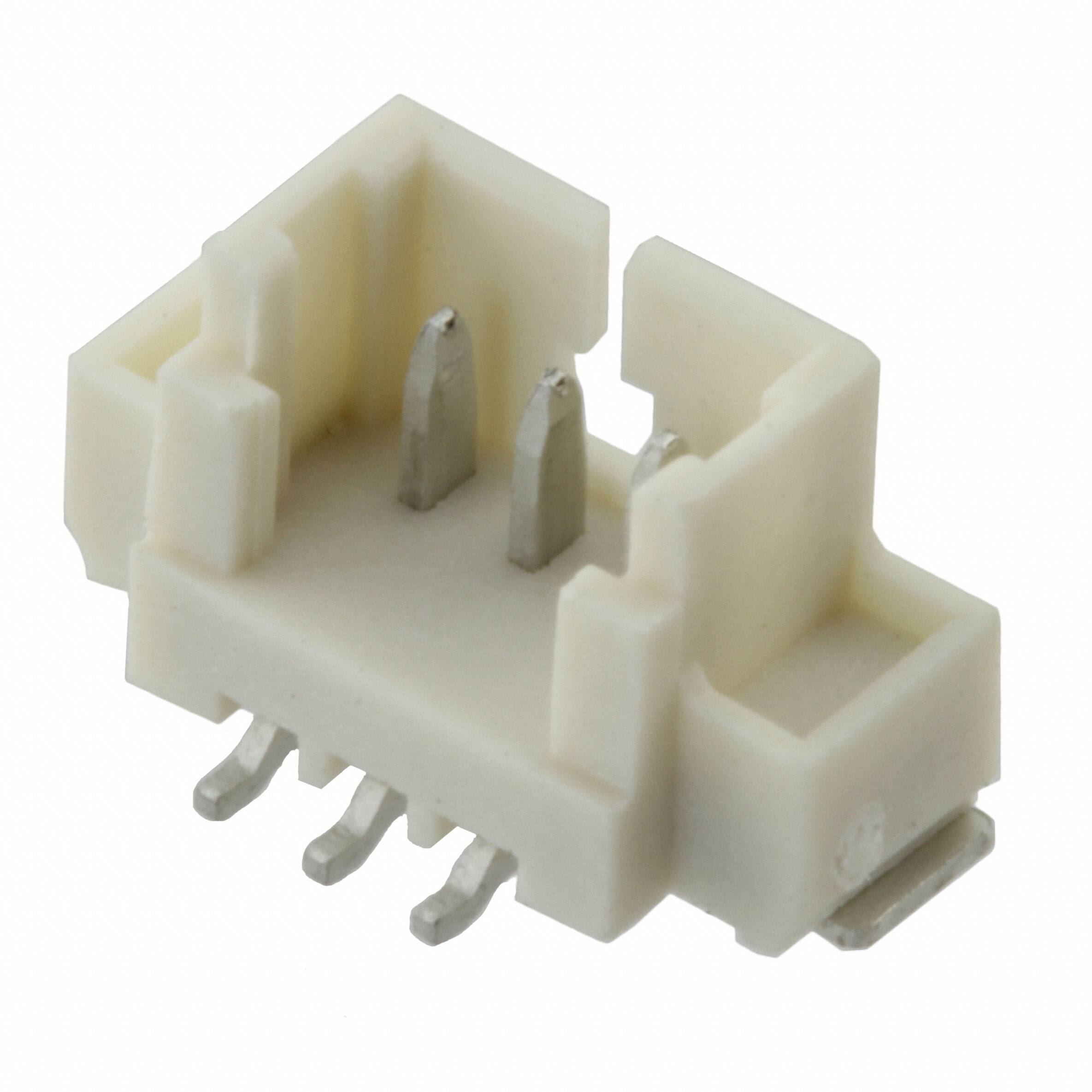

The Würth Elektronik 653103124022 is a 3-position, single-row, 1.25mm pitch surface mount header connector. It features male pin contacts with tin plating and a rectangular contact shape, housed in a beige polyamide (PA46) insulator with a 4-wall shrouded design and detent lock fastening.



Electrical ratings include a current rating of 1A and voltage rating of 125VAC. The connector has a contact resistance of 20 mΩ max, insulator resistance greater than 100 MΩ, and a dielectric withstanding voltage of 250 VAC. It is rated for 25 mating cycles.



Designed for board-to-cable/wire applications, this header includes solder retention features for reliable surface mount assembly. It is packaged in tape and reel, compatible with JEDEC lead-free reflow soldering processes. The operating temperature range is -40°C to 85°C.



The insulator meets UL94 V-0 flammability rating and the component is RoHS compliant and lead-free. This connector is suitable for general electronics equipment.

653103124022 Quick Information

Product Type: Header Connector
Series: WR-WTB
Canonical Name: CONN HEADER SMD 3POS 1.25MM
Subcategory: Shrouded Header

653103124022 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

653103124022 Estimated Pricing

Qty Low High
1+ $2.03 $2.03
10+ $1.73 $1.73
50+ $1.57 $1.57
100+ $1.27 $1.27
500+ $1.17 $1.17
1,000+ $1.17 $1.17

Estimated market price range - modelled values for guidance only, not live distributor offers.

653103124022 Features

  • 3-position, 1.25mm pitch SMT header.
  • Shrouded 4-wall design with detent lock.
  • Rated for 1A and 125VAC operation.
  • Tin-plated copper alloy contacts.
  • Solder retention for reliable assembly.

653103124022 Applications

  • Suitable for board-to-cable connections.
  • Used in consumer electronics and appliances.
  • Ideal for compact, space-constrained designs.
  • Compatible with lead-free reflow soldering.

653103124022 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

3

What is the pitch?

1.25mm

What is the current rating?

1A

What is the voltage rating?

125V

What is the mounting type?

Surface Mount

What is the operating temperature range?

-40°C to 85°C

What is the contact finish?

Tin
