| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
86 pcs
|
86 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Board Lock | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Gender | |
| Insulation Resistance | |
| Insulator Material | |
| Mating Cycles | |
| Military Grade | |
| Mounting Feature | |
| Mounting Orientation | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Operating Temperature Range | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| UL | |
| USB Version | |
| Voltage | |
| Voltage Rating | |
| Withstanding Voltage |

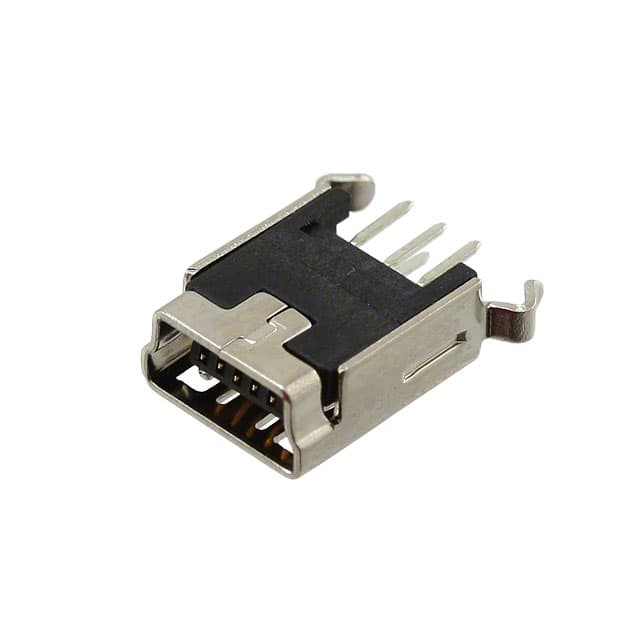

The Würth Elektronik 651005136421 is a Mini USB 2.0 Type B receptacle from the WR-COM series. It features a vertical through-hole mounting orientation with solder termination and a shielded brass shell with nickel plating. The connector has 5 stamped copper alloy contacts with selective gold plating and is rated for 1500 mating cycles.
Electrical ratings include 30 VAC voltage and 1 A current, with a maximum contact resistance of 20 mΩ and minimum insulation resistance of 1000 MΩ. The insulator is made of liquid crystal polymer (LCP) with UL94 V-0 flammability rating. Operating temperature range is -40°C to 105°C.
This connector is suitable for general electronic equipment requiring a reliable USB 2.0 Mini B interface. The board lock feature aids in secure mounting during assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.16 | $3.16 |
| 10+ | $2.79 | $2.79 |
| 50+ | $2.63 | $2.63 |
| 100+ | $2.36 | $2.36 |
| 500+ | $2.15 | $2.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 A
30 VAC
Through Hole, vertical orientation
5
-40°C to 105°C
Yes, it is shielded with a brass shell and nickel plating.
1500 cycles
