| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,565 pcs
|
6565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Lead Spacing | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Style | |
| Tape & Reel | |
| Termination |

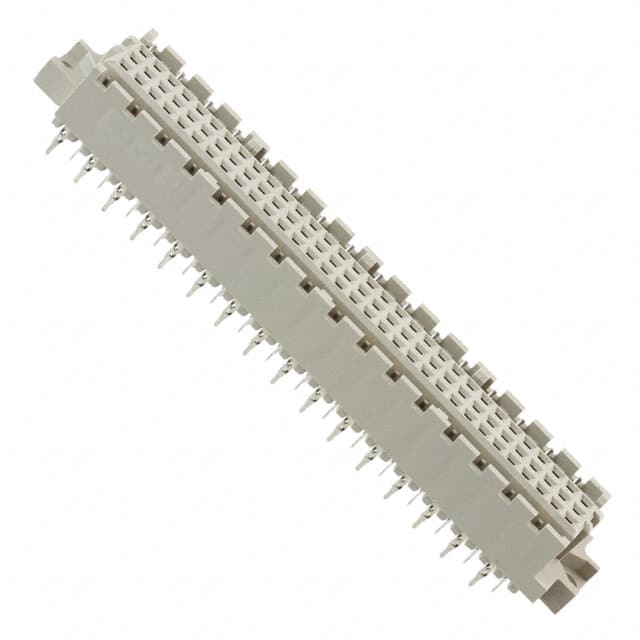

The TE Connectivity 650992-5 is a DIN 41612 Style C receptacle connector designed for backplane and high-density interconnection applications. It features 128 total positions, comprising 96 signal contacts and 32 dedicated ground contacts, arranged in 3 rows with a standard 2.54mm (0.100") pitch.
This connector uses through hole mounting with press-fit termination, providing a solderless, gas-tight connection suitable for automated assembly. The contacts are finished with gold for reliable signal integrity and corrosion resistance. The part is rated as DIN 41612 Level/Class 2, indicating a defined performance level for industrial environments.
Typical applications include telecommunications equipment, data servers, industrial control systems, and other backplane architectures requiring high pin count and robust mechanical retention. The press-fit termination eliminates soldering steps and supports high-density PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.54 | $11.54 |
| 10+ | $10.56 | $10.56 |
| 20+ | $10.10 | $10.10 |
| 60+ | $9.75 | $9.75 |
| 100+ | $9.30 | $9.30 |
| 260+ | $9.02 | $9.02 |
| 500+ | $7.76 | $7.76 |
| 1,000+ | $7.45 | $7.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Receptacle, Female Sockets.
128 positions (96 signal + 32 ground).
2.54mm (0.100").
Through Hole.
Press-Fit.
Gold.
Class 2.
