| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
540 pcs
|
540 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Durability | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

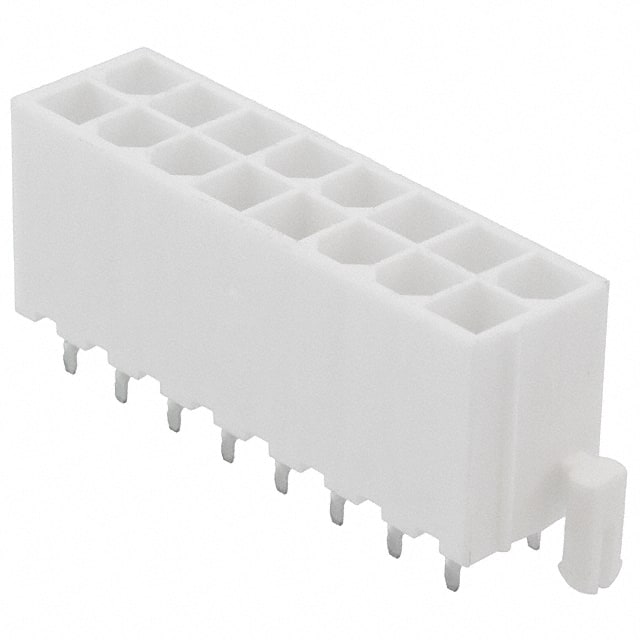

The 649016221732 is a WR-MPC4 series dual row male vertical header from Würth Elektronik, designed for board-to-cable/wire connections.
This header offers 16 positions in 2 rows with a 4.20mm pitch. It features through-hole mounting with solder termination and a shrouded 4-wall design incorporating a locking ramp and board lock for secure attachment. The contacts are male square pins made of copper alloy with a tin finish. The insulator is white polyamide (PA66) Nylon 6/6 with a UL94 V-0 flammability rating. Operating temperature range is -40°C to 105°C.
Electrical ratings: 6A maximum current, 600V maximum voltage, and withstanding voltage of 1500V AC for 1 minute. Contact resistance is 10 mΩ maximum, insulation resistance is 1000 MΩ minimum. Durability is rated at 25 mating cycles.
Packaging is in tray format. The part is compliant with RoHS, REACH, and Halogen Free requirements, and carries UL approval E323964.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.34 | $1.34 |
| 10+ | $1.32 | $1.32 |
| 50+ | $1.22 | $1.22 |
| 100+ | $1.07 | $1.07 |
| 250+ | $1.01 | $1.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions.
4.20mm.
6A maximum.
600V maximum.
Through hole mounting.
-40°C to 105°C.
Polyamide (PA66) Nylon 6/6 with UL94 V-0 rating.
