| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
952 pcs
|
952 pcs | On Request | 25 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mating Cycles | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

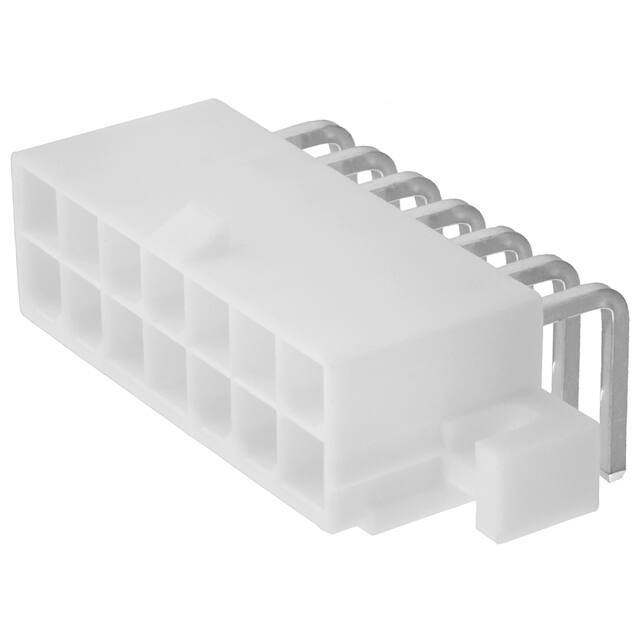

The Würth Elektronik 64901421022 is a 14 position, dual row, 4.20mm pitch male pin header designed for board-to-cable/wire applications. It features a right angle orientation and through hole solder termination. The connector is fully shrouded with four walls and includes mounting flanges for secure attachment to the PCB.
Electrical ratings include a current rating of 6A to 9A depending on the number of circuits (2-3 circuits: 9A, 4-6 circuits: 8A, 7-10 circuits: 7A, 12-24 circuits: 6A) and a working voltage of 600VAC. Contact resistance is 10 mOhm maximum, insulation resistance is greater than 1000 MOhm, and dielectric withstanding voltage is 1500 VAC.
The insulator is made of Polyamide (PA66) Nylon 6/6 with a UL94 V-0 flammability rating and is white in color. Contacts are copper alloy with a tin finish. The operating temperature range is -40°C to 105°C. The component is RoHS compliant and lead free. Packaging is tray.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.68 | $1.68 |
| 10+ | $1.64 | $1.64 |
| 56+ | $1.52 | $1.52 |
| 112+ | $1.33 | $1.33 |
| 280+ | $1.23 | $1.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating depends on the number of circuits: 9A for 2-3 circuits, 8A for 4-6 circuits, 7A for 7-10 circuits, and 6A for 12-24 circuits.
The working voltage is 600 VAC.
The pitch is 4.20 mm.
It has 14 positions arranged in 2 rows.
It is a through hole, right angle mounting type with solder termination.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS compliant and lead free.
