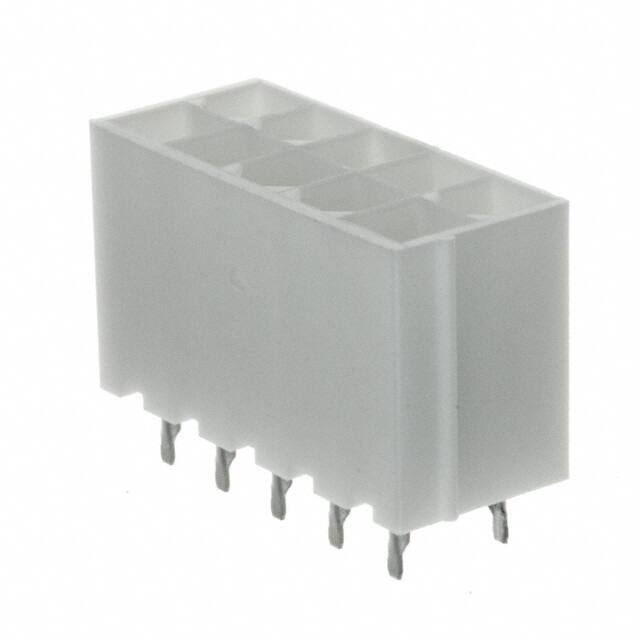

64901021122 Würth Elektronik WR-MPC4 4.20mm male dual row vertical header with 10 positions, through hole mounting, and tin-plated contacts.
Mfr Part #:

64901021122

Available from 3 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik WR-MPC4 4.20mm male dual row vertical header with 10 positions, through hole mounting, and tin-plated contacts.
✓ Total Stock: 600 pcs
$ Price Range: $0.79 - $1.07

64901021122 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
298 pcs
On Request
298 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
240 pcs
On Request
240 pcs On Request 1 On Request On Request 24+ On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
62 pcs
On Request
62 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

64901021122 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Style
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

64901021122 Description

Short technical summary and product information.

The Würth Elektronik 64901021122 is a 10-position, 2-row, 4.20mm pitch male header from the WR-MPC4 Mini Power Connector series. It features a shrouded 4-wall design with a locking ramp for secure mating. The header is through-hole mounted with solder termination. Contacts are made of copper alloy with tin finish, rated for 7A per contact and 600V working voltage. The insulation is white polyamide (PA66/Nylon 6/6) with UL94 V-0 flammability rating. Operating temperature range is -40°C to 105°C. This connector is suitable for board-to-cable/wire applications requiring high current in a compact footprint.

64901021122 Quick Information

Product Type: Header, Male Pins
Series: WR-MPC4
Canonical Name: Würth Elektronik WR-MPC4 4.20mm Male Dual Row Vertical Header, 10 Positions, Through Hole, Tin
Subcategory: Male Pins

64901021122 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead free

64901021122 Estimated Pricing

Qty Low High
1+ $1.07 $1.07
10+ $1.05 $1.05
50+ $0.97 $0.97
120+ $0.85 $0.85
600+ $0.79 $0.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

64901021122 Features

  • 10-position dual row vertical header.
  • 4.20mm pitch for compact power connections.
  • Shrouded 4-wall design with locking ramp.
  • Rated for 7A per contact at 600V.
  • UL94 V-0 flammability rated insulation.

64901021122 Applications

  • Board-to-cable power connections in industrial equipment.
  • Power supply distribution within compact enclosures.
  • Automotive and consumer electronics requiring high current.

64901021122 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

10 positions, all loaded.

What is the pitch?

4.20mm.

What is the current rating?

7A per contact.

What is the voltage rating?

600V.

What is the mounting type?

Through hole.

What is the operating temperature range?

-40°C to 105°C.

What is the contact finish?

Tin.
