| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,168 pcs
|
3168 pcs | On Request | 50 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

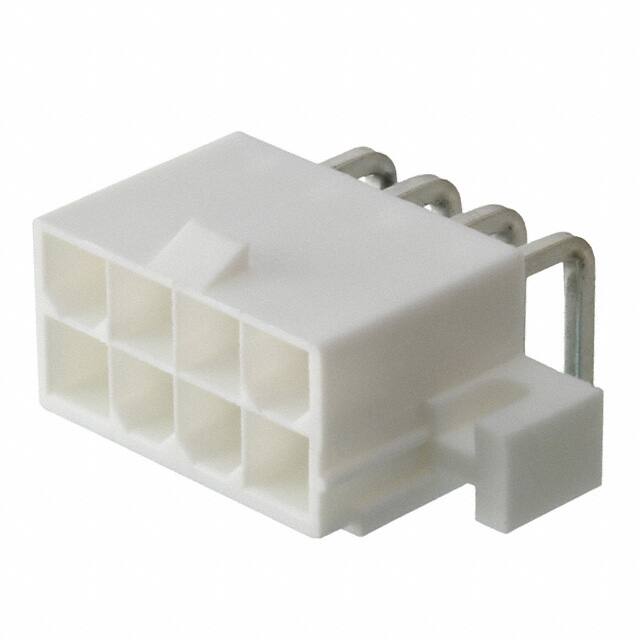

The Würth Elektronik 64900821022 is an 8-position, 2-row, 4.20mm pitch right angle header designed for board-to-cable/wire connections. It features a shrouded 4-wall design with mounting flanges and a locking ramp for secure mating. The header is through-hole mounted and terminated via solder.
Electrically, it is rated for 7A current (for 7-10 circuits) and 600 VAC voltage. Contact resistance is 10 mOhm max, insulation resistance exceeds 1000 MOhm, and dielectric withstanding voltage is 1500 VAC. The operating temperature range is -40°C to 105°C.
Mechanically, the contacts are made of copper alloy with tin plating, and the insulator is nylon 66 with UL94 V-0 flammability rating. The part is qualified for 25 mating cycles. Packaging is in trays.
Typical applications include power and signal distribution in industrial automation, automotive electronics, and consumer appliances where a reliable, polarized connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.13 | $1.13 |
| 10+ | $1.11 | $1.11 |
| 50+ | $1.02 | $1.02 |
| 88+ | $0.90 | $0.90 |
| 528+ | $0.84 | $0.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions in 2 rows.
4.20mm (0.165 inches).
7A for 7-10 circuits (8 positions falls in this range).
600 VAC.
Through hole, right angle.
-40°C to 105°C.
Copper alloy contacts with tin plating.
