| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
539 pcs
|
539 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
539 pcs
|
539 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

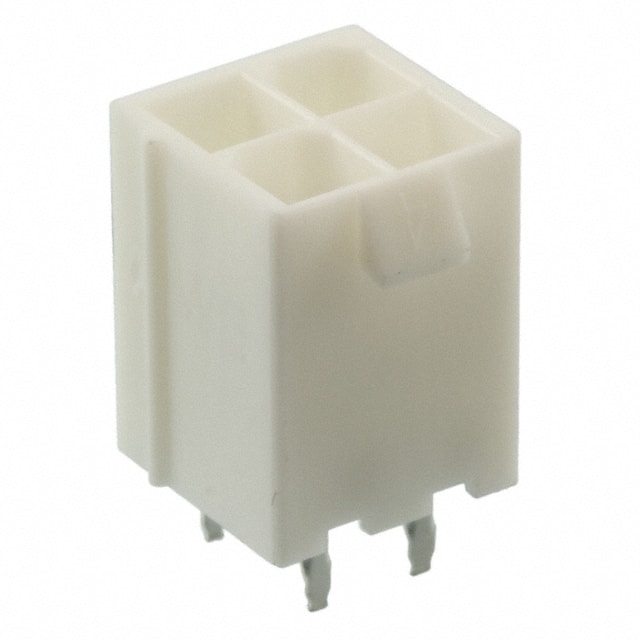

The Würth Elektronik 64900421122 is a 4-position, 2-row male pin header from the WR-MPC4 Mini Power Connector series. It features a 4.20mm pitch and row spacing, making it suitable for board-to-cable/wire applications requiring reliable power delivery in a compact footprint.
This header is shrouded with a 4-wall design and includes a locking ramp fastening type for secure mating. The contacts are made of copper alloy with a tin finish, rated for 8A per contact (derated for 4 positions) and 600V AC working voltage. The insulation is white polyamide (PA66/Nylon 6/6) with a UL94 V-0 flammability rating.
Designed for through-hole soldering, the header has an insulation height of 12.80mm and a contact length of 3.50mm. It operates over a temperature range of -40°C to 105°C and is rated for 25 mating cycles. The part is RoHS3 compliant and lead-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.53 | $0.53 |
| 10+ | $0.52 | $0.52 |
| 50+ | $0.48 | $0.48 |
| 100+ | $0.42 | $0.42 |
| 270+ | $0.39 | $0.39 |
| 540+ | $0.37 | $0.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 4.20mm.
It has 4 positions arranged in 2 rows.
The current rating is 8A per contact for 4 positions.
The voltage rating is 600V AC.
Through hole with solder termination.
-40°C to 105°C.
Yes, it is RoHS3 compliant and lead-free.
