| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

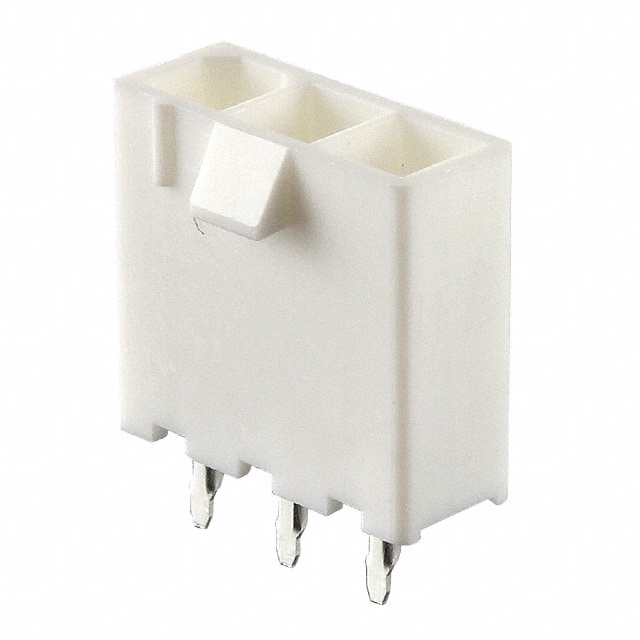

The Würth Elektronik 64900311122 is a WR-MPC4 series male pin header designed for board-to-cable/wire applications. It features 3 positions in a single row with a 4.20mm pitch, making it suitable for wire-to-board connections requiring a secure locking ramp fastening system.
This header has a shrouded 4-wall design, providing physical protection for the male pins. The contacts are made of copper alloy with a tin finish, rated for up to 9A (2-3 circuits) and 600V AC working voltage. The insulator is white polyamide (Nylon 6/6) with a flammability rating of UL94 V-0.
Electrical characteristics include a maximum contact resistance of 10 mOhm, insulation resistance greater than 1000 MOhm, and a dielectric withstanding voltage of 1500V AC. The operating temperature range is -40°C to 105°C, and it is rated for 25 mating cycles.
The component is RoHS3 compliant and lead-free. It is packaged in a tray and is designed for through-hole solder termination.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
| 10+ | $1.20 | $1.20 |
| 25+ | $1.19 | $1.19 |
| 50+ | $1.15 | $1.15 |
| 198+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 4.20mm.
It has 3 positions in a single row.
The current rating is 9A for 2-3 circuits and 8A for 4-5 circuits.
The voltage rating is 600V AC.
It is a through hole mounting type with solder termination.
The operating temperature range is -40°C to 105°C.
The insulator material has a flammability rating of UL94 V-0.
