| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

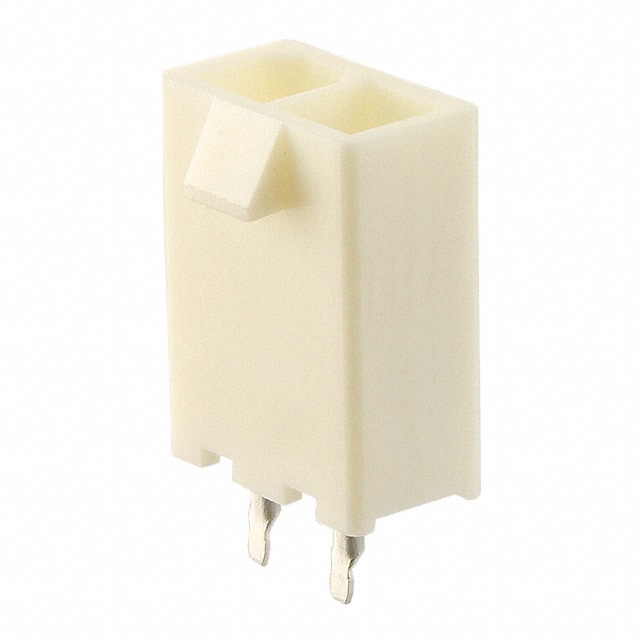

The Würth Elektronik 64900211122 is a 2-position, single row, 4.20mm pitch male header from the WR-MPC4 series. This connector features a shrouded 4-wall design with a locking ramp for secure mating with cable connectors. It is through hole mounted with solder termination, making it suitable for board-to-cable/wire applications.
Electrically, the header is rated for 9A for 2-3 circuits and 8A for 4-5 circuits, with a working voltage of 600V AC. Contact resistance is 10 mOhm maximum, and dielectric withstanding voltage is 1500V AC. The insulation material is Nylon 66 with UL94 V-0 flammability rating, and the operating temperature range is -40°C to 105°C. Contacts are copper alloy with tin plating.
The component is packaged in trays and is RoHS compliant and lead-free per the datasheet. It is designed for general electronic equipment and requires written approval from Würth Elektronik for use in higher safety applications such as automotive, medical, or aerospace.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.11 | $1.11 |
| 10+ | $1.09 | $1.09 |
| 50+ | $1.00 | $1.00 |
| 100+ | $0.88 | $0.88 |
| 288+ | $0.82 | $0.82 |
| 576+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
4.20mm.
9A for 2-3 circuits, 8A for 4-5 circuits.
600V AC.
Through hole with solder termination.
-40°C to 105°C.
Yes, it is RoHS compliant and lead-free per the datasheet.
