| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
191 pcs
|
191 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
57 pcs
|
57 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Thickness | |
| Card Type | |
| Color | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating (Typical) | |
| Features | |
| Gender | |
| Housing Material | |
| Maximum Operating Temperature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Read Out | |
| Tape & Reel | |
| Termination | |
| Termination Style |

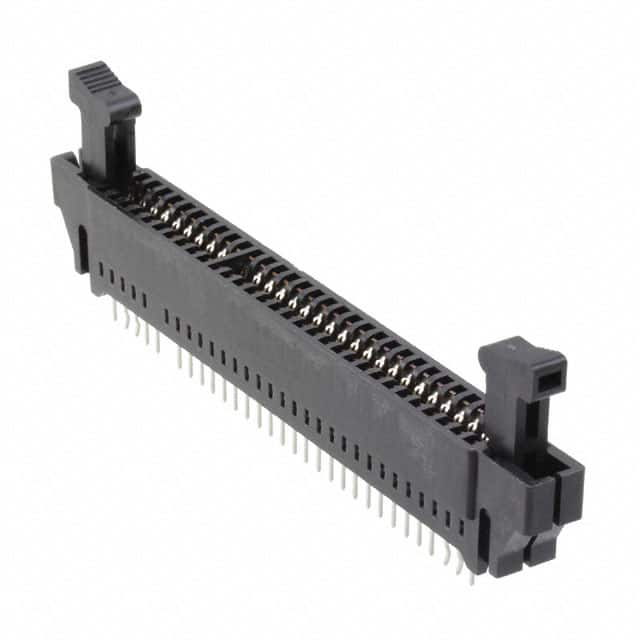

The TE Connectivity 6489930-2 is a dual-row card edge connector designed for Voltage Regulation Module (VRM) applications. It is a dual edge female connector with 62 positions (one position unloaded for keying). The pitch is 2.54mm (0.100") and it supports dual readout, accepting card thicknesses from 0.054" to 0.070" (1.37mm to 1.78mm).
This connector uses through hole mounting with solder termination. Contacts are made of copper alloy with a gold finish of 15.0µin (0.38µm). The housing is PBT thermoplastic rated 94V-0 with a maximum operating temperature of 125°C, while the specified operating temperature range is -55°C to 85°C. Typical current rating is 5.5A per contact.
The connector includes latches for card retention and is part of the VRM 10.0 series. It is suitable for motherboard power supply modules and other high-current card edge applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.57 | $7.57 |
| 10+ | $6.58 | $6.58 |
| 25+ | $6.16 | $6.16 |
| 50+ | $5.87 | $5.87 |
| 100+ | $4.97 | $4.97 |
| 1,000+ | $4.75 | $4.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
62 positions, with 61 loaded (one position is unloaded for keying).
2.54mm (0.100 inches).
Typical 5.5 Amps per contact in typical VRM applications.
Through hole with solder termination.
Gold, 15.0µin (0.38µm) thickness.
-55°C to 85°C.
0.054" to 0.070" (1.37mm to 1.78mm).
