| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,250 pcs
|
1250 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

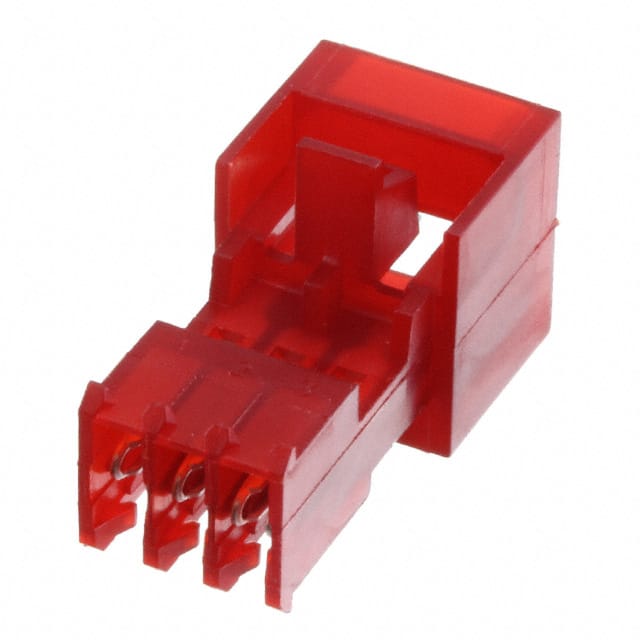

The TE Connectivity 647000-3 is a three-position rectangular plug connector from the MTA-100 series. It uses insulation displacement contact (IDC) termination for discrete or ribbon cable, eliminating the need for wire stripping. The connector has a 2.54mm pitch with a single row of male pins.
The plug supports 22 AWG wire and is designed for free hanging (in-line) mounting with a right-angle orientation. Contacts are plated with a tin-lead finish at 80.0µin (2.03µm) thickness. A latch holder provides secure fastening, and the closed-end feature is included.
The red housing and standard 2.54mm pitch make this connector suitable for compact cable assemblies in free-hanging or panel-mount applications. Its IDC termination and single-row design simplify wiring in space-constrained environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.91 | $0.91 |
| 10+ | $0.78 | $0.78 |
| 25+ | $0.73 | $0.73 |
| 50+ | $0.69 | $0.69 |
| 100+ | $0.66 | $0.66 |
| 250+ | $0.62 | $0.62 |
| 500+ | $0.59 | $0.59 |
| 1,000+ | $0.56 | $0.56 |
| 2,500+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 647000-3 has 3 positions in a single row.
The pitch is 2.54mm (0.100").
The connector supports free hanging (in-line), right-angle mounting.
It uses IDC (Insulation Displacement Connector) termination for 22 AWG discrete or ribbon cable.
Pins have a tin-lead finish with a thickness of 80.0µin (2.03µm).
Yes, it uses a latch holder for fastening and has a closed-end feature.
