Mfr Part #:

6469048-1

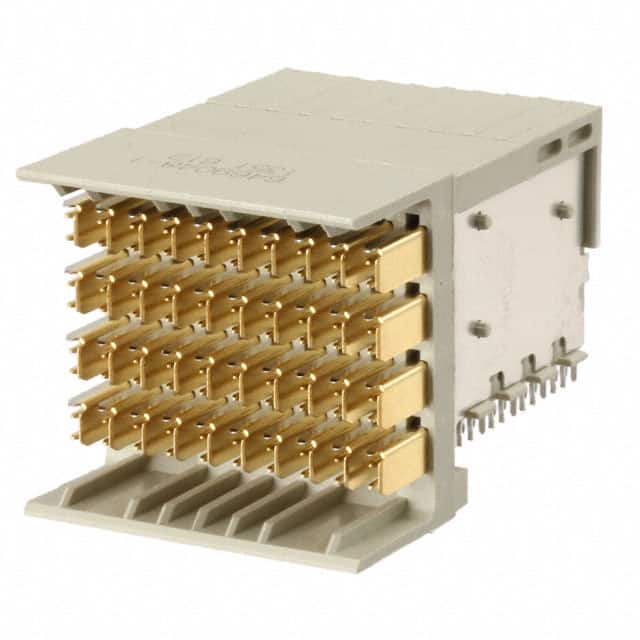

High speed header connector with 120 positions, 8 rows, 2.50mm pitch. Board edge, through hole, right angle mounting with press-fit termination.

✓ Total Stock: 2,450 pcs

$ Price Range: $40.72 - $51.89

6469048-1 Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	2,342 pcs On Request	2342 pcs	On Request	1	On Request	On Request	20+	On Request	On Request
Speed Components Ltd ✓ Non-Authorised Inventory information	103 pcs On Request	103 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
OTL Components ✓ Non-Authorised Inventory information	5 pcs On Request	5 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

6469048-1 Description

Short technical summary and product information.

The TE Connectivity 6469048-1 is a high speed header connector designed for daughtercard applications in backplane systems. It features 120 positions arranged in 8 rows with a 2.50mm pitch, providing 80 single signal contacts and 40 ground contacts for signal integrity.

The connector uses a press-fit termination for reliable solderless connections and is mounted at the board edge with a right angle orientation. Gold contact finish with 30.0µin thickness ensures corrosion resistance and reliable mating cycles.

This connector is suitable for high speed data transmission applications where signal integrity and density are critical. The 8-row configuration with dedicated ground contacts helps manage impedance and reduce crosstalk.

6469048-1 Quick Information

Product Type: Backplane Connector

Series: HDR 8X010P R/A B-PLANE HMZD

Canonical Name: TE Connectivity 6469048-1 High Speed Header, 120 Position, 2.50mm Pitch, Edge Mount, Press-Fit

Subcategory: High Speed Backplane Connector

6469048-1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

6469048-1 Estimated Pricing

Qty	Low	High
1+	$51.89	$51.89
10+	$43.89	$43.89
20+	$42.51	$42.51
60+	$41.57	$41.57
100+	$40.72	$40.72

Estimated market price range - modelled values for guidance only, not live distributor offers.

6469048-1 Features

120 positions with 80 signal and 40 ground contacts.
2.50mm pitch for high density routing.
Press-fit termination for reliable solderless connections.
Gold contact finish with 30.0µin thickness.
Right angle board edge mounting for daughtercard use.

6469048-1 Applications

High speed backplane data transmission systems.
Daughtercard to backplane interconnections.
Telecommunications and networking equipment.
Server and data storage infrastructure.

6469048-1 FAQs

5 frequently asked questions generated from this part’s specifications.

How many positions does the 6469048-1 have?

The connector has 120 positions, all loaded, arranged in 8 rows and 10 columns.

What is the pitch of this connector?

The pitch is 2.50mm.

What mounting type does the 6469048-1 use?

It uses board edge, through hole, right angle mounting with press-fit termination.

What is the contact finish?

The contacts have a gold finish with a thickness of 30.0µin (0.76µm).

What is the connector style?

It is a high speed connector style.

Category	Specialized
Manufacturer Name	TE Connectivity
Connector Style	High Speed
Connector Type	Header, Male Pins and Blades
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Layout, Typical	80 Single Signal, 40 Ground
Lead Style	Press-Fit
Mounting Type	Board Edge, Through Hole, Right Angle
Number of Columns	10
Number of Positions	120
Number of Positions Loaded	All
Number of Rows	8
Pitch	2.50mm
Tape & Reel	No
Termination	Press-Fit
Termination Style	Press-Fit
