| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,695 pcs
|
2695 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,900 pcs
|
1900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Layout, Typical | |
| Contact Material | |
| Housing Material | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style |

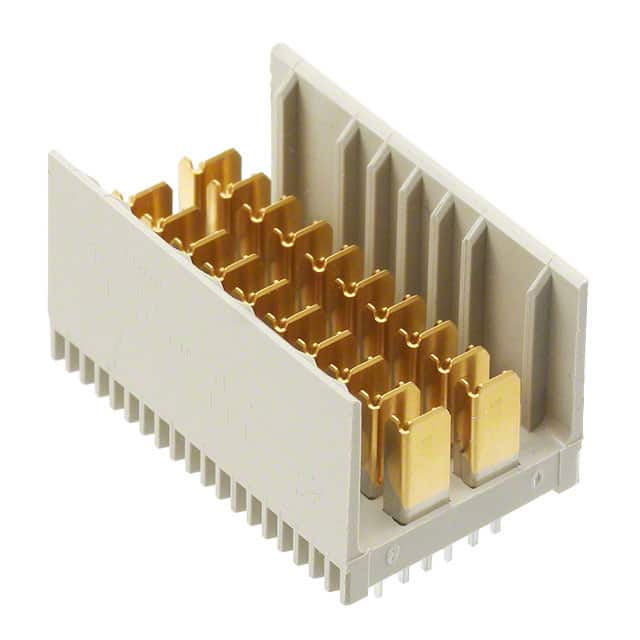

The TE Connectivity 6469025-1 is a high speed backplane header designed for demanding data communication and telecom applications. It features 60 positions arranged in 4 rows with a 2.50mm pitch, providing 40 signal and 20 ground contacts for improved signal integrity. The connector uses a press-fit termination for reliable solderless connection to the PCB, and the through hole mounting ensures robust mechanical attachment. The contacts and shields are made of phosphor bronze with gold plating on the mating area (30µin) and matte tin on the press-fit tail. The housing is glass filled polyester with UL 94V-0 flammability rating. This connector is part of the HMZd series and is designed to meet Telcordia GR-1217-CORE requirements for uncontrolled environments. The operating temperature range is -55°C to +125°C. Typical applications include backplane interconnects in networking, telecommunications, and data storage equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.38 | $13.38 |
| 10+ | $11.36 | $11.36 |
| 20+ | $11.00 | $11.00 |
| 60+ | $10.65 | $10.65 |
| 100+ | $10.30 | $10.30 |
| 260+ | $9.84 | $9.84 |
| 1,200+ | $9.12 | $9.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
60 positions (40 signal, 20 ground).
2.50mm (0.098").
Through hole with press-fit termination.
Gold plating, 30µin on mating area.
4 rows.
-55°C to +125°C.
RoHS3 compliant (unverified).
