| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Noise | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Ripple | |
| Standard Number | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight | |
| Width |

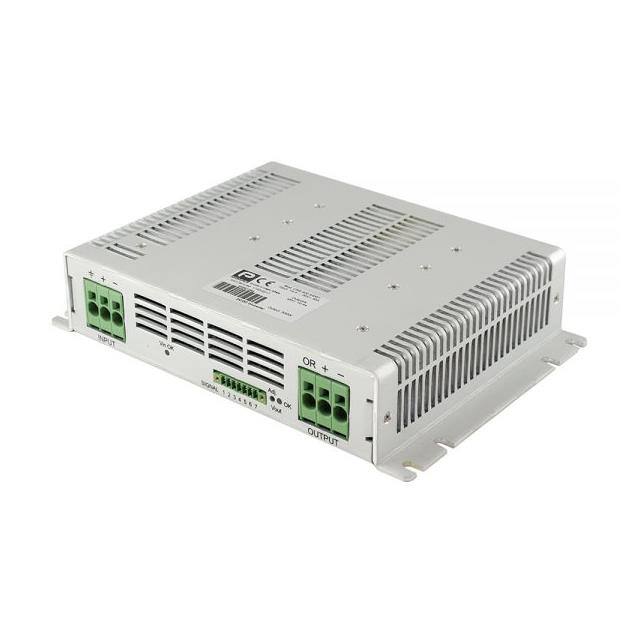

The Premium PSU CRS-500 series, specifically the 6464T model, is a robust 500W enclosed DC/DC converter designed for demanding applications. It features a nominal 24V output voltage capable of delivering up to 20.8A, with a power rating of 499W. The converter boasts an impressive efficiency of up to 92% and supports a wide input voltage range, nominal 110Vdc (66V-144V).
Designed for reliable operation, it offers line and load regulation of less than 0.2%, with a maximum ripple of 50mVpp and noise below 100mVpp. The operating temperature range is -25°C to 70°C, with provisions for operation down to -40°C under specific conditions. Safety certifications include EN60950-1 and EN62368-1, with EMC compliance to EN61000-6-4 and EN50121-3-2.
This converter is suitable for ITE (Commercial) applications and is designed according to EN50155 standards, including fire and smoke approval per EN45545-2. It features chassis mounting for secure installation and includes protections against overloads, short-circuits, and reverse input voltage. The MTBF is rated at 400,000 hours at 40°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal output voltage of the 6464T DC DC Converter is 24Vdc.
The 6464T DC DC Converter can provide a maximum output current of 20.8A.
The 6464T DC DC Converter has a power rating of 499W.
The efficiency of the 6464T DC DC Converter is up to 92%.
The operating temperature range for the 6464T DC DC Converter is -25°C to 70°C when operating at 75% load, and -25°C to 55°C at 100% load.
Yes, the 6464T DC DC Converter is designed according to EN50155 standards and is fire and smoke approved per EN45545-2.
The 6464T DC DC Converter complies with safety standards EN60950-1 and EN62368-1.
